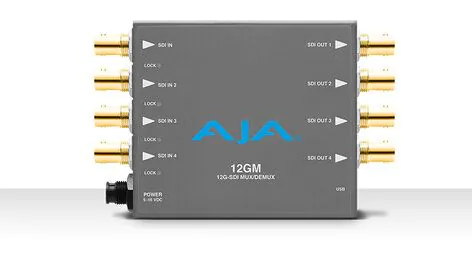

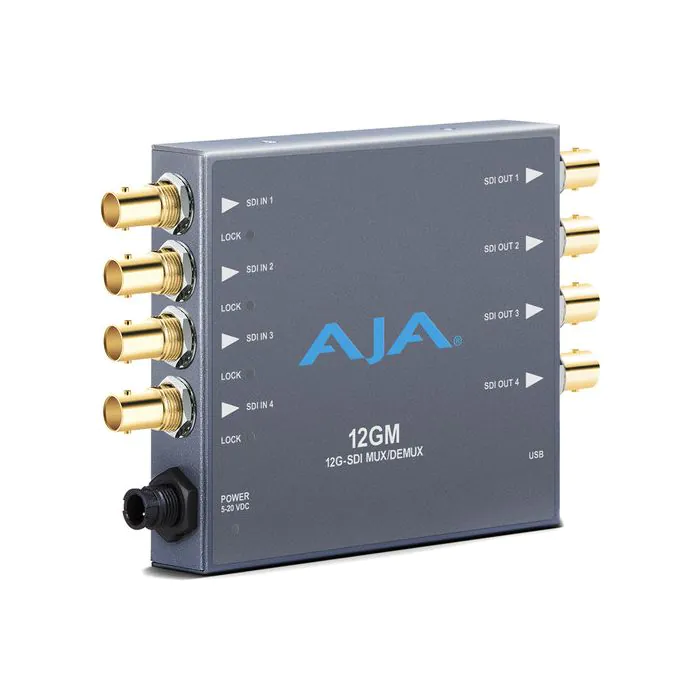

AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer

AED 4,169.26

  • Converts Between SDI Standards
  • Multi-Link to Single-Link and Vice Versa
  • Supports up to DCI 4K Resolution
  • Re-Clocks and Amplifies

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: 12GM
View All With This Brand: AJA

Description

AJA 12GM Overview

AJA‘s 12GM is an SDI standard converter. Resolutions up to DCI 4K are supported, so Quad 3G-SDI can be converted into 12G and vice-versa. Multi-link signals can now be combined to run over fewer cables, and newer standards can now be backward compatible with legacy SDI gear. All signals are re-clocked and amplified to ensure signal integrity over long cable runs.

Compact 12G to/from 3G conversion
SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
Converts SMPTE 425M A to/from SMPTE 425M B
Fully equalizing and reclocking with jitter attenuation
If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
DWP-U-R1 power supply included

Technical Specification

AJA 12GM Specs

Inputs 4 x BNC, SD/HD/3G/6G/12G-SDI
Outputs 4 x BNC, SD/HD/3G/6G/12G-SDI
Other I/O 1 x USB mini-B
Resolution Support 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60
3840 x 2160 23.98/24/25/29.97/30/50/59.94/60
2048 x 1080 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97/30
720p 50/59.94/60
NTSC
PAL
SDI Standards SMPTE-259/292/424/2081/2082
Cable Equalization 12G: 295′ / 90 m
6G: 401′ / 125 m
3G: 525′ / 160 m
1.5G: 656′ / 200 m
270M: 1542′ / 470 m(tested with Belden 1694 coax cable)
Chroma Subsampling 4:2:2 YCbCr, 4:4:4 YCbCr/RGB
Color Depth 8/10-bit
Audio Support 16-channels embedded 24-bit audio
Power Input: 5-20 VDC
Consumption: 12 W
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C Humidity: 10-90%, non-condensing
Operating Altitude: < 10,000′ / 3000 m
Dimensions 5.8 x 4 x 0.9″ / 14.6 x 10.2 x 2.3 cm
Packaging Info
Package Weight 1.63 lb
Box Dimensions (LxWxH) 7.35 x 5.8 x 4.15″

In the Box

  • AJA 12GM 12G-SDI to/from SDI Muxer/DeMuxer
  • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
  • Limited 5-Year Warranty
