AJA HA5-12G HDMI 2.0 to 12G-SDI Mini-Converter

AED 3,512.38

  • 1 x HDMI 2.0 Input
  • 2 x 12G-HD/SD-SDI Outputs
  • Supports Up to DCI 4K60 Input
  • Two Sample Interleave (2SI) DCI/UHD 4K

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: HA5-12G
View All With This Brand: AJA

Description

AJA HA5-12G OVERVIEW

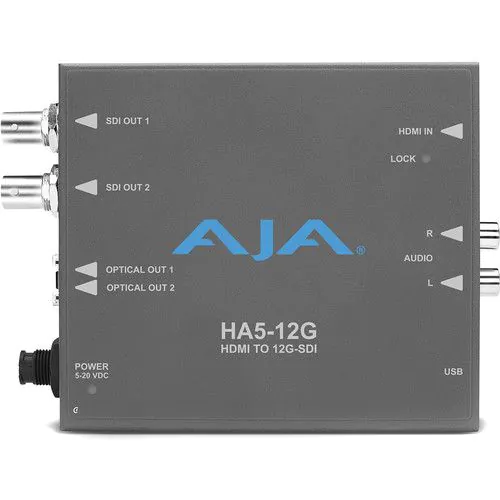

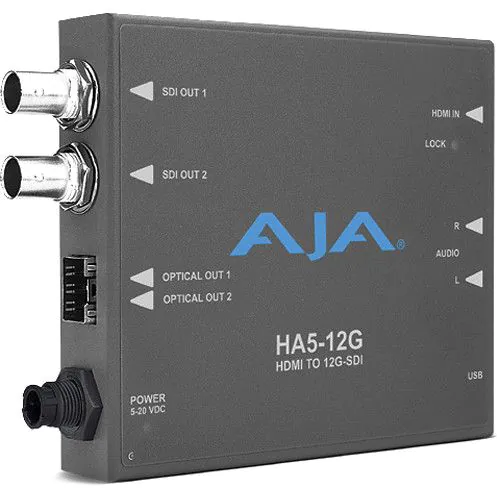

AJA‘s HA5-12G HDMI 2.0 to 12G-SDI Mini-Converter converts a single HDMI 2.0 video input to dual 12G-SDI outputs, minimizing cable runs for HDMI distribution. This compact converter features one HDMI 2.0 input, and two 12G-SDI single-link outputs. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). The HA5-12G supports High-Dynamic Range (HDR) content with analysis of InfoFrame data input via HDMI.

With features including video-resolution support up to DCI 4K60, display of 60/50 fps High Frame Rates (HFR) at 60p, and DCI/UHD 4K source-mapping with 2SI (two sample interleave), the HA5-12G fits neatly into your professional workflow. The HA5-12G supports both DCI and UHD 4K, compensating for the difference in resolutions when you are displaying one type of content on the other type of monitor, and vice-versa. This mini-converter’s USB port enables you to configure, control, and update firmware with the free, downloadable Mini-Config software.

Input up to eight HDMI-embedded audio channels, and output up to eight SDI-embedded channels. Audio may also be input via two-channel RCA-style audio connectors. An LED indicator displays one of three colors when your input signal is locked: amber for DCI/UHD 4K, red for HD-SDI, or green for SD-SDI.

The AJA HA5-12G includes a universal power supply with international plug connectors for worldwide use. A separately available D-Tap power cable enables you to battery-power this Mini-Converter in remote locations.

KEY FEATURES

  • Converts one HDMI 2.0 input to two 12G-SDI outputs
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • Two Sample Interleave (2SI) UHD 4K source-mapping
  • With AJA Mini-Config software, supports HDR InfoFrame data-analysis via HDMI input
  • An LED signal-lock display indicates your input source-type with one of three colors
  • Input up to eight SDI-embedded audio channels
  • Output up to eight channels of HDMI-embedded 24-bit audio
  • Additional 2-channel RCA analog audio input
  • Configure, control, and update via the USB port and the included Mini-Config software
  • Universal power supply with international plug connector set
  • Can be battery-powered using a separately available D-Tap cable
  • Compact and portable form

Technical Specification

AJA HA5-12G SPECS

Video
Supported Video FormatsDCI 4K: 4096 x 2160p
UHD 4K: 3840 x 2160p
2K: 2048 x 1080p
HD: 1920 x 1080p
HD: 1920 x 1080i
HD: 1280 x 720p
HD: 720 x 576p
HD: 720 x 576i
HD: 720 x 480p
HD: 720 x 480i
Video Input
ConnectorHDMI: 1 x HDMI 2.0b
Chroma SubsamplingYCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or full-level
Bit Depth8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit)
High Dynamic RangeHDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b
Supported Input Resolutions4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94
Video Output
Connectors12G/HD/SD-SDI: 2 x BNC
SMPTE-2082/2081/424/292/259
Chroma SubsamplingYCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or full-level
Bit Depth8-, 10-bit
4K Signal IntegrationTwo-Sample Interleave (2SI) DCI/UHD 4K source mapping
Supported Output Resolutions1 x 12G-SDI:
4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.981 x 6G-SDI:
4096 x 2160: 30/29.97/25/24/23.98
3840 x 2160: 30/29.97/25/24/23.98

1 x 3G-SDI (Level A or B dual-link):
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p*: 60/59.94/50

1 x 1.5G-SDI:
2048 x 1080p: 30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

1 x 270 Mb SDI:
625i: 50
525i: 59.94

Audio
Audio Input DigitalEmbedded Audio: 24-bit, 8 channels
Audio Input AnalogConnectors: 2 x RCA, 2 channels, -10 dBu (nominal)
Audio Output DigitalEmbedded SDI Audio: 24-bit, 8 channels
User Interface
Configuration1 x USB
Power
Power Supply5-20 VDC regulated, 11 W
Environmental
Operating Temperature & Humidity32 to 104°F / 0 to 40°C*
10-90 %, non-condensing
Storage TemperaturePower Off:
-40 to 140°F / -40 to 60°C
Operating Altitude<10,000 / 3048 m
General
Dimensions4.6 x 4.02 x 0.9″ / 116.84 x 102.11 x 22.86 mm
Weight0.5 lb / 0.23 kg
Packaging Info
Package Weight1.6 lb
Box Dimensions (LxWxH)7.3 x 5.8 x 1.57″

In the Box

  • AJA HA5-12G HDMI 2.0 to 12G-SDI Mini-Converter
  • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
  • Limited 5-Year Warranty
