ARRI S30-C LED Bi-Colour SkyPanel – Blue/Silver (Schuko Power Plug)

AED 17,330.00

  • Fully Tuneable from 2,800 K – 10,000 K
  • Plus/Minusgreen correction
  • Vibrant Color Selection (RGB+W Color Gamut)
  • Hue and Saturation Control
  • High Color Rendering
  • Low Power Consumption (200 W Nominal)
  • Tremendous Output – Brighter than 1kW Tungsten Soft Light
  • Fully Dimmable from 0 – 100%
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • On-Board Battery Connection (23 – 36V DC)
  • Onboard Simple Control Panel

Delivery will be in 3 to 4 working days.

Available on backorder

Wishlist
SKU: L0.0007712
View All With This Brand: ARRI

Description

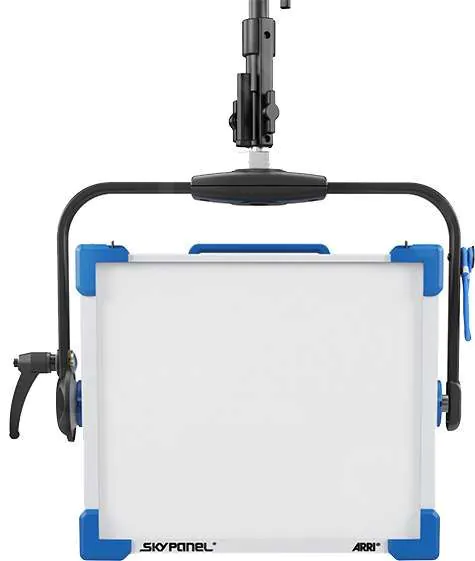

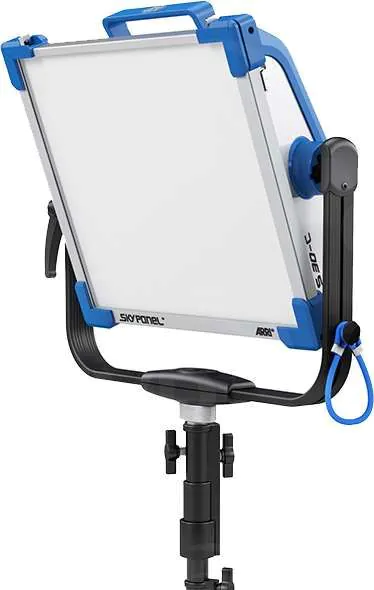

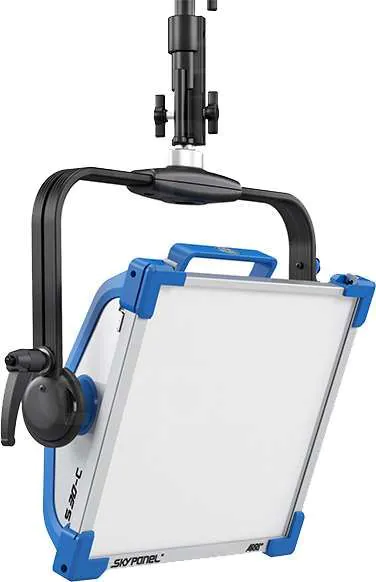

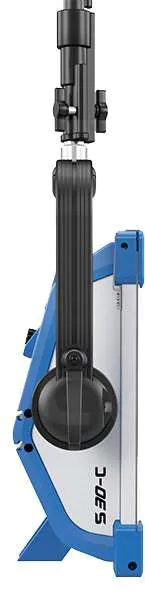

ABOUT THE ARRI S30-C LED BI-COLOUR SKYPANEL

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, colour, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.

SkyPanel will initially be available in two sizes: the S60 and S30. The S60 is a midrange model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile app ications. Both models are available in fully color tuneable and remote phosphor versions.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Colour) versions are fully tuneable; correlated colour temperature is adjustable between 2,800 K and 10,000 K, with excellent colour rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and colour gives users an unprecedented amount of control.

The state-of-the-art light engines and electronics built into every SkyPanel have paved the way for a powerful new feature in SkyPanel Firmware 3.0: lighting effects. With SkyPanel Lighting Effects users can now choose and manipulate 12 effects without the need for a lighting console or hours of programming. Each effect has several parameters that allow for customization of the effect to fit your needs. The lighting effects include: candle, clouds passing, club lights, colour chase, cop car, fire, fireworks, light strobe, lightning, paparazzi, pulsing, and television. SkyPanel Lighting Effects changes the game for on-set lighting effect generation.

Technical Specification

Lamphead
Optical SystemSoft Diffusion Panel
Light Aperture355 x 300 mm / (14 x 11.8 inches)
Beam Angle110º (Half Peak Angle)
Weight7.8 kg (17.2 lbs)
HandlingAluminum Yoke, High Strength Tilt Lock, Pole Operation Option (Pan & Tilt)
Mounting16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)
Tilt Angle+/- 90°
Lamphead Voltage Input:48 V DC
Power Consumption200 W Nominal, 240 W Maximum
Lamphead Power ConnectionMale 3-Pin XLR – 15 amp (Pin 1: Negative / Pin 2: Positive)
Battery ConnectorMale 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC VoltageRange 23 – 36 V DC
Battery Mode Light Output100% of Total Output
White Light2,800K – 10,000K Continuously Variable Correlated Colour Temperature
Colored LightFull RBG+W Colour Gamut with Hue and Saturation Control
Colour Temperature Tolerance+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Colour RenditionCRI Average +95
TLCI Average +91
Green-Magenta AdjustmentContinuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming0 – 100% Continuous
ControlOn-Board Controller, 5-Pin DMX In and Through,
EtherCon LAN Network Connectivity, USB-A
Remote Device ManagementDMX Setup, Hour Counter and Standard RDM Commands
USB InterfaceDMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac and USB Stick
Housing ColourBlue/Silver, Black
Ambient Temperature Operation-20 to +45º C (-4 to +113º F)
Protection ClassIP 20
Estimated LED Lifetime (L70)50,000 hours
Estimated Colour Shift Over Lifetime-200 K
Certifications (pending)CE, FCC; GS, cNRTL, CB
Power Supply Unit
Power Supply Input Range90 – 250 V AC, 50 – 60 Hz
Power Supply Output Range48 V DC
Power Input ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
Power Output ConnectionFemale 3-Pin XLR – 10 Amp (Pin 1: Negative / Pin 2: Positive)
powerCON TRUE1 (mains power through)
Weight2.5 kg (5.5 lbs)
Dimensions383 x 116 x 90 mm (15 x 4.6 x 3.5 inch)
ControlOn-Board On/Off Switch
MountingSuper Clamp Attachement / SkyPanel PSU Rail Mount

In the Box

  • 1x ARRI S30-C LED SkyPanel
  • 1x 3m DC Cable
  • 1x S30 PSU
  • 1x PSU Rail Mount
  • 1x Standard Diffusion Panel
