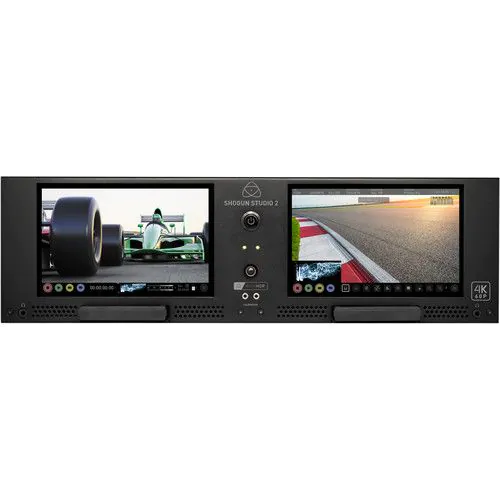

Atomos Shogun Studio II Rackmount 4K Dual Recorder & Monitor (3RU)

AED 13,119.75

  • Dual 7″ 3000 cd/m² Monitors
  • 4K60 Continuous Recording/Monitoring
  • SDI & HDMI I/O with Conversion
  • Stereo XLR I/O per Ch. & Phantom Power
  • ProRes RAW, ProRes, DNxHR, CDNG Support
  • Multicam 4 x 1080p60 SDI ISO Recordings
  • 3RU Rackmount Solution

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: ATOMSHSTU2
View All With This Brand: Atomos

Description

The Shogun Studio II Rackmount 4K Dual Recorder & Monitor from Atomos features two 7″ monitors with a high brightness of 3000 cd/m². It allows continuous 4K60 recording and monitoring on both channels, and it supports four 1080p60 SDI ISO recordings in a multicamera setup. The 3RU rackmount solution offers SDI and HDMI input/output with signal conversion, stereo XLR input/output per channel with 48V phantom power, and compatibility with ProRes RAW, ProRes, DNxHR, and Adobe CDNG codecs.

Technical Specification

Physical Specifications
Dimensions (W x H x D mm)447 x 152 x 280mm, 17.6 x 6.0 x 11.0”(without rack ears), 490 x 152 x 280mm, 19.3 x 6.0 x 11.0” (with rack ears)
Weight5.0kg / 11lb
Rack height3U
Mount pointsRemovable rack ears and desktop feet
Dual recorderDual Screen, Recorder and switcher
Environmental
Ambient operating temperatureUp to 40°C
Construction and Control
BodyAluminium alloy chassis
CoolingActively controlled fans and Heat Sink
Tally lightOn front
Multi-function buttonTrigger dual record
Power
Continuous powerDual PSU
DC in connectorDual IEC C14
Display
TouchscreenSuperAtom IPS panel (capacitive touch)
SizeDual 7.2”
ResolutionDual 1920 x 1200
PPI327 per screen
Bit depth10-Bit (8+2 FRC)
Backlight TypeDynamic zoned back light 3″, Dynamic Full Array Local Dimming (FALD) 360 Zones
Brightness (cdm2 / nits)1500 / 3000 Peak HDR brightness
Aspect ratio16 : 9
Color GamutRec.709
Calibration supportAtomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Color Pipeline
GammaSony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
GamutBt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display.Cube Format Display Only
3D LUT Down StreamLoop out
3DLUT 50/50Yes
Monitoring ModesNative / HLG / PQ / 3D LUT
HDR output ConversionLog / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI1 x HDMI (2.0) 4k p60
SDIQuad link 3G SDI, with 2 x 12G SDI Backwards compatible Auto detection per recorder channel
SDI RAWApples ProRes RAW up to 6k
RJ45 / NetworkService Only
Bit Depth8/10-Bit Video / RAW up to 16-Bit
Video Chroma Subsampling4:02:02
HDCP copy protectionNo supported
Metadata
HDMIRAW – white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut
SDIFile Name from Arri, RED
Video Output
HDMI1 x HDMI (2.0) 4k p60
SDI loop out1 x 2 x 12G SDI Backwards compatible Auto detection
SDI Play out2 x2 x 12G SDI Backwards compatible Autodetection level A and B selectable
Video Chroma Subsampling422
Bit Depth10-Bit Video
Web Streaming
USB UVCOptional via Connect 4k
Video Signal Conversion
HDMI to SDIYes – Video and RAW
SDI to HDMIYes – Video and RAW
Audio In/Out
Audio Quality24/48kHz
Audio CodecPCM
HDMI8ch 24-Bit, input dependent
SDI12ch 24-Bit, input dependent
Analogue Audio in2 x XLR Per recorder channel
Analogue Audio Out2 x XLR Per recorder channel
Headphone out3.5mm 2ch.
Timecode / Sync
EmbeddedHDMI and SDI
Time of dayYes, Time and Date
LTCLTC via BNC in/out Record mode
GenlockGenLock in/out Playback mode
Resolution and Frame Rates (Record, Monitor & Playback)
6kRAW Only up to 30p via SDI Only
4k DCI23.98/24/25/29.9/30/50/59.94/60p
4k UHD23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 10802k DCI: 23.98/24/25/29.9/30/50/59.94/60p / Sony FX9 RAW up to 180p
FHD 1920 x 1080 Progressive23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsFConverted to P and looped out PsF
FHD 1920 x 1080 Interlaced23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p50/59.94/60p
Recording CODEC
CDNGFor SDI RAW inputs Only
Apple ProRes RAWProRes RAW, HQ
Apple ProResLT, 422, 422HQ
Avid DNxHDDNxHD 220x,220,145,36
Avid DNxHRLB, SQ, HQ, HQX.
Playback
PlaylistYes, Create customer play lists from full or sub clips
LoopYes, with user customisable in / out markers
Apple ProRes RawYes, recorded clips
Apple ProResYes, with Linear PCM audio
Avid DNxYes, with Linear PCM audio
Recording functions
Pre-roll recordYes (HD 8s, 4K 2s) – Not available in RAW
ISO RecordUp to 8 x up to 1080p 60 (3G SDI Level A ONLY) 4 Per recorder channel
Switched Program RecordYes Up to 1080p 60
Multi Input / Switching
SDI A/B toggleYes, Up support up to 12G SDI per input
Dual Input displayVia Multi ISO input mode
Multiple SDI inputUp to 4 x up to 1080p 60 (3G SDI Level A ONLY)
Input transitionsAuto or manual XML transition
Supported media
Master Caddy INot compatible
SSDminiYes, BUT ONLY with optional Grab handle
File NamingUnit Name – Scene/Shot/Take, Arri & RED via SDI
File SystemExFAT
On screen tools
WaveformYes, 3 size / Position
RGB paradeYes, 3 size / Position
Vector scopeYes, 2 size / Position
1 x ZoomYes. 1:1 Pixel mapping for 4k
2 x ZoomYes
Focus peakingColour selected / threshold setting / colour / mono / edges only
False colourYes, with Scale
ZebraYes, Adjustable
Isolate color channelBlue Only
Cine Frame Guides2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides9:16, 1:1, 191:1, 4:5
Safe areasAction and Graphic
Grid markers9 grid
Anamorphic desqueeze1.25x 1.33x , 1.5x ,1.8x ,2x
Display FlipVertical Only
Onboard Signal Processing
Pulldown Removal24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
4K UHD Downscale for HDLoop out – 4K UHD to FHD
DCI CropLoop out – 17:9 to 16:9 Crop
Remote control
HDMIAuto HDMI Trigger, Supported Protocols – Canon, Sony, Atomos Open Standard
SDISDI trigger camera selectable
Serial 2.5mm JackLANC control and calibration via optional USB to serial cable
RJ45Service Only
RS422Yes, Qualified controllers only
External Device Control
Supported Applications
XMLCut tag EDL and Multcam with transitions in FCPX XML
Apple ProRes RAWApple FCPX, Adobe Premier, After Effects, Avid Media Edius, Assimilate Scratch, Baselight Film Light.
Video CodecsAll applications with support for Apple ProRes and Avid DNX in .MOV wrapper

In the Box

  • Atomos Shogun Studio II Rackmount 4K Dual Recorder & Monitor (3RU)
  • 2 x Rack Ear with Screws
  • Atomos Master Caddy II (5-Pack)
  • 4 x Rubber Foot
  • 2 x Large Rubber Foot
  • 2 x IEC Power Cable
  • Screen Cleaning Cloth
  • Limited 1-Year Warranty
