AVMATRIX Portable 6 Channel Multi-format Streaming Video Switcher

AED 5,679.45

  • Mix 6 x Input Formats up to 1080p60
  • 2 x HDMI and 4 x SDI Auto-Detect Inputs
  • 1080p60 and 1080i60 Scaled PGM Out
  • USB-C 3.0 Livestreaming Output
  • 1 x HDMI and 2 x SDI PGM Outputs
  • 1 x HDMI and 1 x SDI Multiview Outputs
  • 1 x SDI AUX Output (PGM or PVW)
  • 3.5mm Stereo Audio I/O
  • RCA (L/R) Analog I/O
  • GPIO Tally

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: PVS0613U
View All With This Brand: AVMatrix

Description

AVMATRIX PVS0613U Overview

The Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3″ Display from AVMATRIX supports a mix of different resolutions and frame rates up to 1080p60 over two HDMI and four SDI auto-detecting inputs. The switcher provides a flexible solution for sports, events, education, and various other live production applications. All the signals can be scaled to 1080p60 or 1080i60 on PGM output, and you can switch between the sources and apply audio mixing and transition effects.

Featuring a USB-C 3.0 output, the switcher can also be connected to your Windows/Mac/Linux computer as if it was a webcam. You’ll be able to stream connected video and audio signals to UVC/UAC compatible platforms such as OBS Studio, Skype, YouTube Live, Facebook Live, Zoom, and Teams.

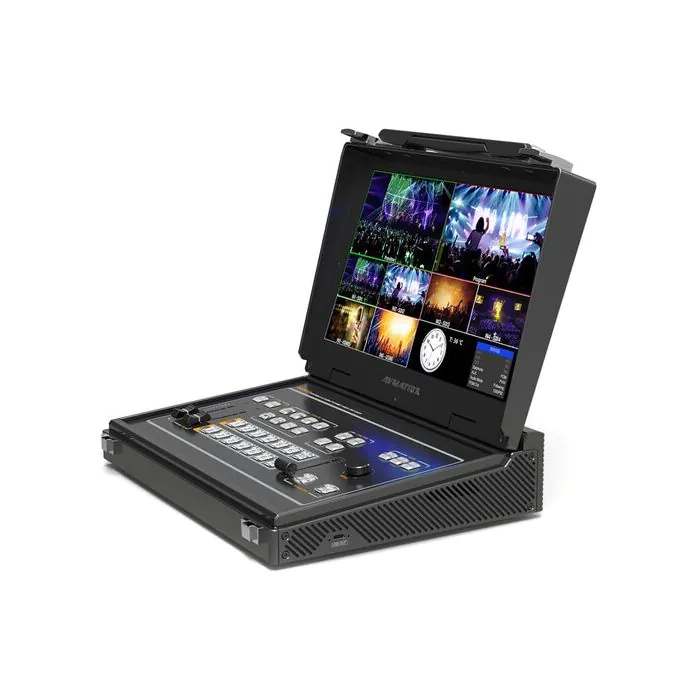

In an all-in-one portable design, the switcher is housed in a robust metal case and has a 13.3″ Full HD IPS display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter. A clock and a menu list are also displayed in the bottom right corner.

Key Features
Multiview output fixed at 1080p60; PGM scaled output selectable via a knob
Two HDMI and four SDI inputs
One HDMI and two SDI PGM outputs
One HDMI and one SDI multiview outputs
SDI AUX output can be selected as PGM or PVW
UVC livestreaming via USB-C 3.0 connection
One 3.5mm stereo audio input; one RCA (L/R) input
One 3.5mm stereo audio output; one RCA (L/R) output
RJ45 LAN interface (for updates; synchronize local time)
GPIO tally
T-Bar/Auto/Cut transitions
Mix/Fade/Wipe transition effects
PiP mode with adjustable size and position
FTB (fade to black) emergency button

Technical Specification

AVMATRIX PVS0613U Specs

Mix Effects
Effect Types
Transition
Processing
Switching Type
Pushbutton, T-Bar, Scroll Wheel
Processing Resolution
1080p
Input
Video Inputs
2x HDMI
4x BNC (3G-SDI)
Input Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs
1x 1/8″ / 3.5 mm TRS Stereo
1x 2RCA Analog
Output
Video Outputs
1x HDMI (Program)
2x BNC (3G-SDI) (Program)
1x USB-C
Output Video Format
HDMI / SDI
1080p at 24/25/30/50/60 fps
1080i at 50/60 fps
USB-C
WUXGA (1920 x 1200)
1080p
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
WXGA+ (1440 x 900)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
1280 x 720 (Non-Standard WXGA)
XGA (1024 x 768)
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
576i / 625 lines
720 x 480
VGA (640 x 480)
640 x 360
Audio Outputs
1x 1/8″ / 3.5 mm TS Stereo
1x 2RCA Analog
Multiview Output
6-Way Multiview via HDMI, SDI
Connectivity
Other I/O
1x BNC Output
1x DE-15/DB-15 Tally
1x RJ45 LAN
Video Standard Compliance
SMPTE 259M/292M/424M
Display
Display Size
13.3″
Screen Resolution
1920 x 1080
Hardware
OS Compatibility
Windows 7 or Later / macOS 10.8 or Later / Linux 2.6 or Later
Wireless
No
Power
Power I/O
1x Barrel (12 VDC at 2 A) Input
Power Consumption
25 W
General
Operating Conditions
12 to 92°F / -20 to 60°C at 20 to 70% Humidity
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
13 x 9.6 x 2.6″ / 330 x 244 x 67 mm
Weight
8.8 lb / 4 kg
Packaging Info
Package Weight
11.405 lb
Box Dimensions (LxWxH)
15.2 x 14.5 x 5″

In the Box

  • AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3″ Display
  • 12 VDC, 3A Power Supply
  • USB-C 3.0 to USB-A Cable
  • Limited 2-Year Manufacturer Warranty
