Description

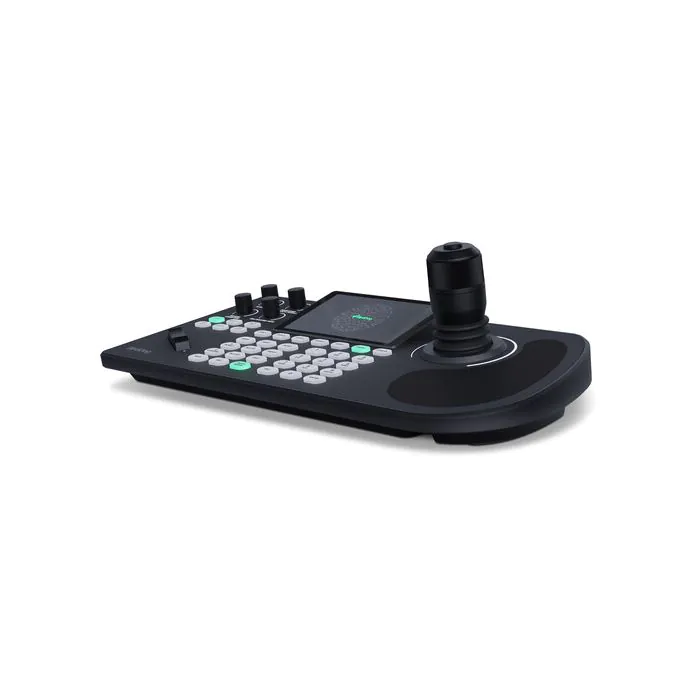

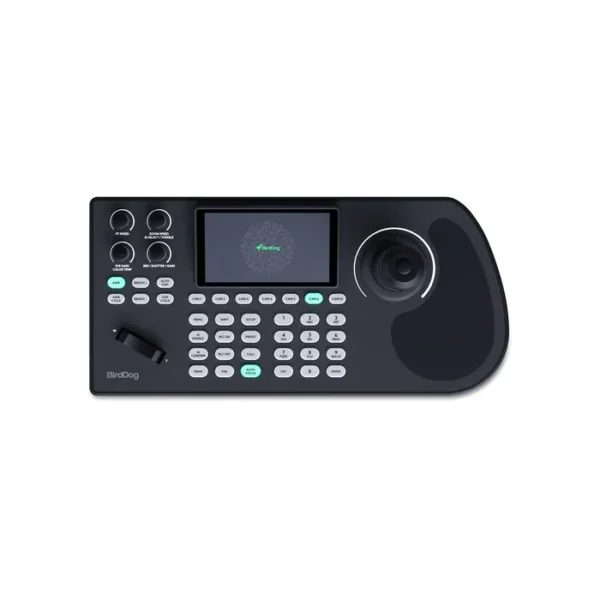

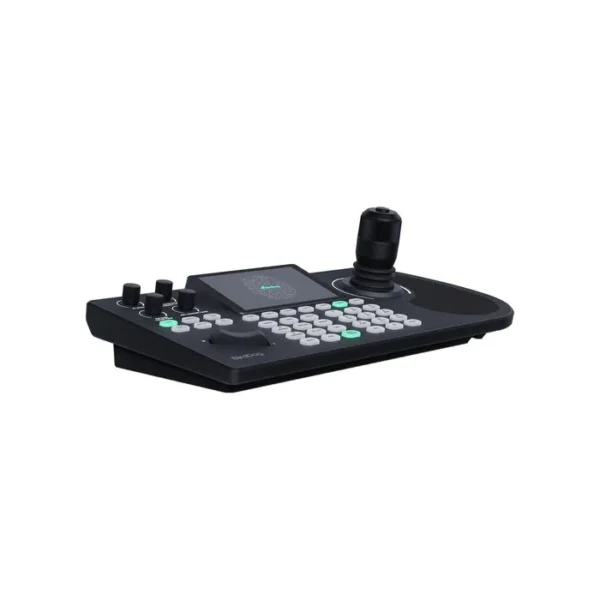

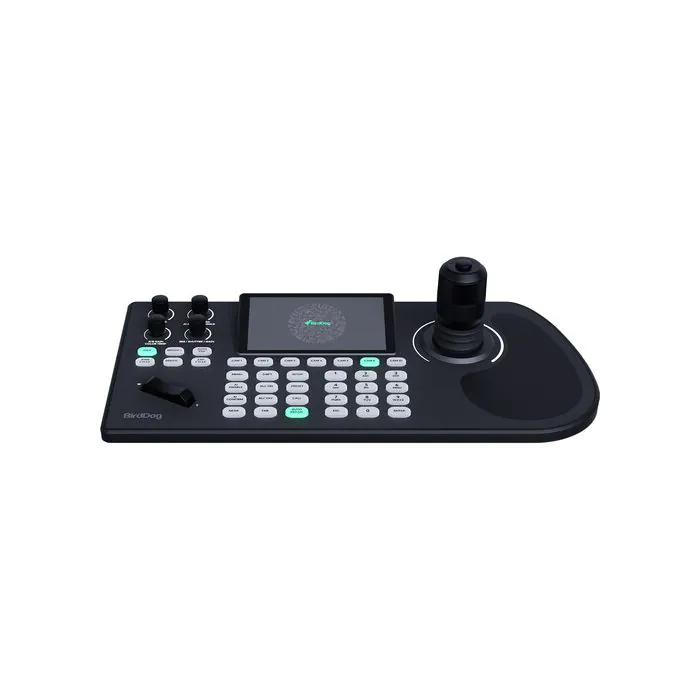

Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog. Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.
The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.
All-Day Operational Comfort
Rugged, ergonomic design with a hand-rest area and tactile controls for seamless, extended use.
Monitor up to four cameras simultaneously or focus on one in full-screen mode. Pair and switch cameras with a single keystroke.
Fine-tune Mode provides 10x joystick sensitivity for precise on-air framing.
Access essential functions like pairing, switching, and setup instantly for a smooth, user-friendly experience.
Refined through user insights, the KDP offers precision, comfort, and an eco-conscious design at an affordable price point.
Technical Specification
BirdDog KBD PTZ Controller Specs
Key Specs
| Number of Supported Cameras |
255 Channels via IP
|
| Control I/O |
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output
|
| Controls |
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
|
| Touchscreen |
No
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
≤5 W
|
| Security Lock Support |
No
|
General
| Number of Supported Cameras |
255 Channels via IP
|
| Supported Control Protocols |
IP
NDI
NDI|HX2
NDI|HX3
ONVIF
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
|
| IP Streaming |
NDIHX, ONVIF: UHD 4K
|
| Control I/O |
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output
|
| Other I/O |
1x USB-A Input/Output
|
| Controls |
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
|
| Presets |
255 via IP, RS-232, VISCA, Pelco-P, Pelco-D
|
Display
| Native Resolution |
1280 x 720
|
| Touchscreen |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power Connectors |
1x Barrel / Coaxial
|
| Power Consumption |
≤5 W
|
| Input Power |
12 VDC
|
Physical
| Operating Conditions |
14 to 130°F / -10 to 54°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 130°F / -10 to 54°C at 0 to 90% Humidity
|
| Security Lock Support |
No
|
| Dimensions |
14.8 x 7 x 4.6″ / 377 x 177 x 118 mm
|
Packaging Info
| Package Weight |
7.025 lb
|
| Box Dimensions (LxWxH) |
16.2 x 8.7 x 6.9″
|
