Technical Specification

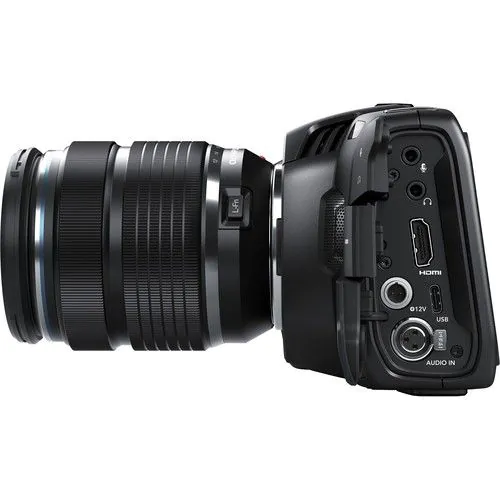

Blackmagic Design Pocket Cinema Camera 4K Specs
Image Sensor
| Image Sensor Size |
18.96 x 10 mm (4/3″) |
| Sensor Type |
CMOS |
| Shutter Type |
Rolling Shutter |
| ISO |
100 to 25,600 (Expanded) |
| Advertised Dynamic Range |
13 Stops |
Camera
| Lens Mount |
Micro Four Thirds |
| Lens Communication |
Yes |
| Built-In ND Filter |
None |
| Built-In Microphone Type |
Stereo |
| Recording Media |
1 x CFast 2.0 Card Slot
1 x SDXC UHS-II Card Slot |
| Variable Frame Rates |
Up to 120 fps |
Internal Recording
| Raw Recording |
Raw:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (21 to 203 MB/s)
4096 x 1712 at 23.98/24/25/29.97/30/50/59.94/60/75 fps
2880 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/80 fps
2688 x 1512 at 23.98/24/25/29.97/30/50/59.94/60/75/120 fps |
| Recording Modes |
ProRes 422HQ:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (117.88 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (110 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)
ProRes 422:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)
ProRes 422LT:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)
ProRes 422 Proxy:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s) |
| Still Image Support |
None |
External Recording
| Video Output |
4:2:2 10-Bit via HDMI:
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Raw Output |
USB:
4096 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps |
Interfaces
| Video Connectors |
1 x HDMI Output |
| Audio Connectors |
1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output |
| Other I/O |
1 x USB Type-C Video Output
1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input) |
| Wireless Interfaces |
Bluetooth Control |
Display
| Display Type |
Fixed Touchscreen LCD |
| Size |
5″ |
| Resolution |
1920 x 1080 |
EVF
| EVF |
Optional, Not Included |
Power
| Battery Type |
Canon LP-E6 |
| Power Connectors |
1 x Weipu SF610/S2 Input |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 113°F / -20 to 45°C |
| Operating Humidity |
0 to 90% |
General
| Accessory Mount |
1 x 1/4″-20 Female |
| Tripod Mounting Thread |
1/4″-20 Female |
| Material of Construction |
Carbon Fiber |

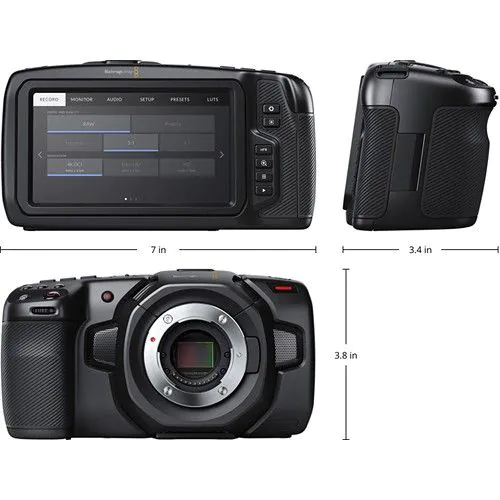

| Dimensions |
7 x 3.8 x 3.4″ / 177.8 x 96.52 x 86.36 mm |
| Weight |
1.5 lb / 680.38 g |
Packaging Info
| Package Weight |
3.15 lb |
| Box Dimensions (LxWxH) |
10.75 x 7.6 x 5.85″ |
