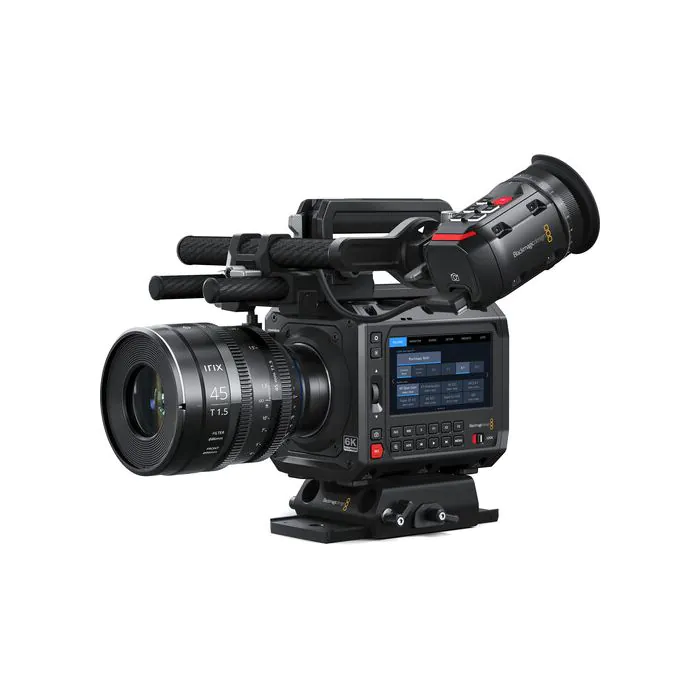

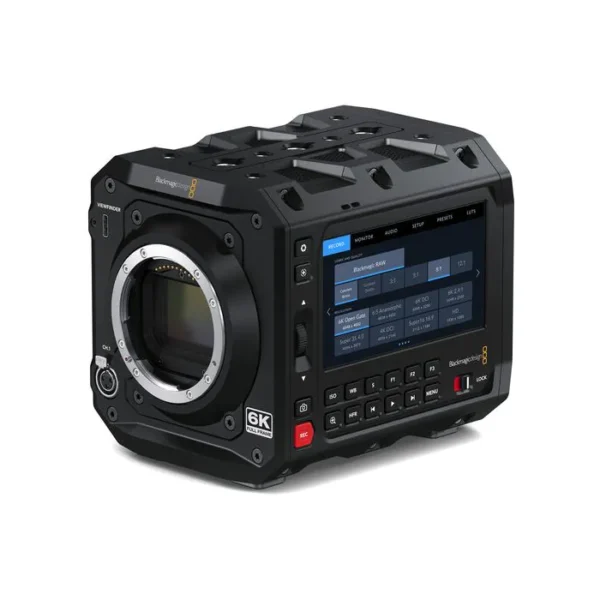

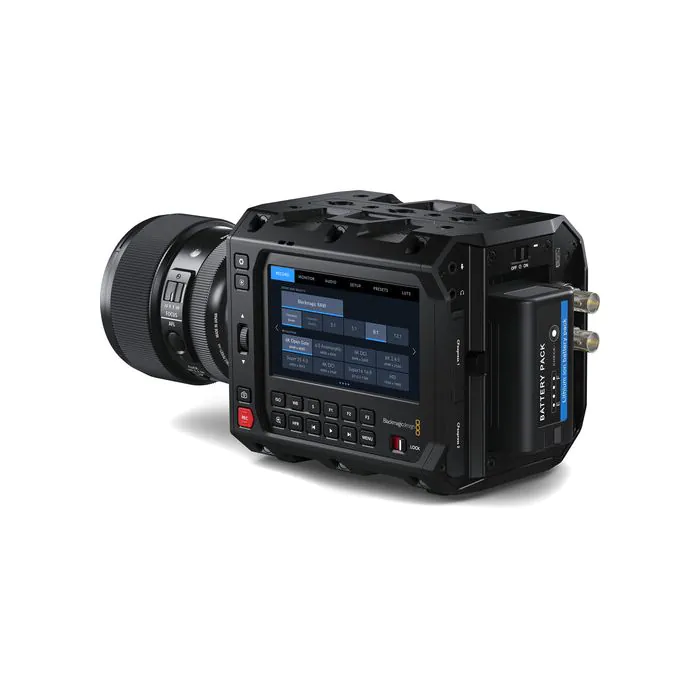

Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)

AED 12,732.30

  • Full Frame 6K Sensor
  • Up to 6K36 fps Open Gate / 6K Anamorphic
  • 13-Stop Dynamic Range, Dual-Native ISO
  • Leica L Lens Mount
  • 4″ HDR LCD Touchscreen
  • Records Blackmagic RAW and H.264 Proxies
  • Built-In Streaming via Ethernet or 4G/5G
  • Switchable Side Plates, Mounting Threads
  • Two CFexpress Card Slots, USB-C Port
  • Ethernet and 12G-SDI Ports

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: CINECAMCPYXA60LFL
View All With This Brand: Blackmagic Design

Description

Blackmagic Design PYXIS 6K Overview

The Blackmagic Design PYXIS 6K Cinema Box Camera takes the digital film innovations of the Blackmagic Design Cinema Camera 6K and turns it into a box-style cinema camera with native Leica L lens mount with customizable side plates. A full-frame 6K sensor captures rich colors, accurate skin tones, and a wife 13-stop dynamic range with its expanded 36 x 24mm sensor. Record both Blackmagic RAW and H.265 proxy files to the cloud or even stream directly to your social media platform of choice via Ethernet or mobile 4G/5G technology. The PYXS can film up to 6K Open Gate 3:2 video at 36 fps or 6K Anamorphic 6:5 video at 60 fps, among other selectable resolutions.

Technical Specification

Effective Sensor Size 36mm x 24mm (Full Frame)
Lens Mount Active L-Mount.
Lens Control Iris and focus on supported lenses.
Dynamic Range 13 Stops.
Dual Native ISO 400 and 3200
Shooting Resolutions 6048 x 4032 (Open Gate 3:2) up to 36 fps

4832 x 4032 (Anamorphic 6:5) up to 36 fps

6048 x 3200 (6K DCI 17:9) up to 48 fps

6048 x 2520 (6K 2.4:1) up to 60 fps

4096 x 3072 (Super 35 4:3) up to 50 fps

4096 x 2160 (4K DCI 17:9) up to 60 fps

2112 x 1184 (Super 16 16:9) up to 100 fps

1920 x 1080 (1080 HD 16:9) up to 120 fps
Frame Rates Maximum sensor frame rate dependent on resolutionand codec selected.

Project frame rates of23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 6K 2.4:1 and4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
Focus Auto focus available using compatible lenses.
Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses,iris button for instant auto iris settings on compatible lenses.
Screen Dimensions 4” 1920 x 1080.
Screen Brightness 1500 nits
Screen Type LCD capacitive touchscreen.
Metadata Support Automatically populated lens data from electronicL-Mount lenses. Automatic recording of camera settings,motion sensor data plus slate data such as project, scene number,take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls Touchscreen menus on 4 inch screen. 1 x Power Switch,
1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push,
1 x ISO Button, 1 x White Balance, 1 x Shutter Button,
3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button,
1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button,
1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch.
Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections Total Video Inputs None
Total Video Outputs 1 x 12G-SDI up to 2160p60

1 x Viewfinder USB-C with power,data, video and locking connector.
Analog Audio Inputs 1 x mini XLR analog audio in,

switchable between mic with phantom power support and line level(up to +14dBu).
Analog Audio Outputs 1 x 3.5mm headphone jack.
Reference Inputs Tri-Sync/Black Burst and Timecode.
Computer Interface USB Type-C for external drive recording,

PTP camera control and software updates.
Ethernet 1 x 1Gb/s RJ 45 connector supporting 10/100/1000 BASE-T.
Audio:
Microphone Integrated stereo microphone.
Built in Speaker 1 x mono speaker.
Media:
Media 2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1

expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs:
Codecs Blackmagic RAW Constant Bitrate 3:1,

Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Control:
External Control Blackmagic Zoom Demand and Blackmagic

Focus Demand for controlling your camera and lens from tripod handles.

External control of some camera settings, focus, iris and zoom with compatible lenses.

Camera Control REST API over Ethernet for external control

via HTTP when used with REST client applications such as Postman.
Storage Features:
Storage Type 1 x CFexpress Type B

1 x high speed USB-C expansion port for external media.
Recording Formats Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3

and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520,

4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film,

extended video, video dynamic range or custom 3D LUT embedded in metadata.
Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
Storage Rates Storage rates based on 30 frames per second.
6048 x 4032 (6K Open Gate 3:2) Blackmagic RAW 3:1 – 370 MB/s

Blackmagic RAW 5:1 – 223 MB/s

Blackmagic RAW 8:1 – 140 MB/s

Blackmagic RAW 12:1 – 94 MB/s

Blackmagic RAW Q0 – 278 to 555 MB/s

Blackmagic RAW Q1 – 186 to 444 MB/s

Blackmagic RAW Q3 – 124 to 318 MB/s

Blackmagic RAW Q5 – 75 to 186 MB/s
4832 x 4032 (Anamorphic 6:5) Blackmagic RAW 3:1 – 297 MB/s

Blackmagic RAW 5:1 – 179 MB/s

Blackmagic RAW 8:1 – 112 MB/s

Blackmagic RAW 12:1 – 75 MB/s

Blackmagic RAW Q0 – 223 to 445 MB/s

Blackmagic RAW Q1 – 149 to 356 MB/s

Blackmagic RAW Q3 – 100 to 255 MB/s

Blackmagic RAW Q5 – 60 to 149 MB/s
6048 x 3200 (6K DCI 17:9) Blackmagic RAW 3:1 – 295 MB/s

Blackmagic RAW 5:1 – 177 MB/s

Blackmagic RAW 8:1 – 111 MB/s

Blackmagic RAW 12:1 – 75 MB/s

Blackmagic RAW Q0 – 221 to 441 MB/s

Blackmagic RAW Q1 – 148 to 353 MB/s

Blackmagic RAW Q3 – 99 to 253 MB/s

Blackmagic RAW Q5 – 60 to 148 MB/s
6048 x 2520 (6K 2.4:1) Blackmagic RAW 3:1 – 233 MB/s

Blackmagic RAW 5:1 – 140 MB/s

Blackmagic RAW 8:1 – 88 MB/s

Blackmagic RAW 12:1 – 59 MB/s

Blackmagic RAW Q0 – 175 to 348 MB/s

Blackmagic RAW Q1 – 117 to 279 MB/s

Blackmagic RAW Q3 – 78 to 199 MB/s

Blackmagic RAW Q5 – 47 to 117 MB/s
4096 x 3072 (Super 35 4:3) Blackmagic RAW 3:1 – 192 MB/s

Blackmagic RAW 5:1 – 116 MB/s

Blackmagic RAW 8:1 – 73 MB/s

Blackmagic RAW 12:1 – 49 MB/s

Blackmagic RAW Q0 – 145 to 288 MB/s

Blackmagic RAW Q1 – 97 to 231 MB/s

Blackmagic RAW Q3 – 65 to 165 MB/s

Blackmagic RAW Q5 – 39 to 97 MB/s
4096 x 2160 (4K DCI 17:9) Blackmagic RAW 3:1 – 136 MB/s
Blackmagic RAW 5:1 – 82 MB/s
Blackmagic RAW 8:1 – 52 MB/s
Blackmagic RAW 12:1 – 35 MB/s
Blackmagic RAW Q0 – 102 to 203 MB/s
Blackmagic RAW Q1 – 69 to 163 MB/s
Blackmagic RAW Q3 – 46 to 117 MB/s
Blackmagic RAW Q5 – 28 to 69 MB/s
2112 x 1184 (Super 16 16:9) Blackmagic RAW 3:1 – 40 MB/s
Blackmagic RAW 5:1 – 24 MB/s
Blackmagic RAW 8:1 – 16 MB/s
Blackmagic RAW 12:1 – 11 MB/s
Blackmagic RAW Q0 – 30 to 59 MB/s
Blackmagic RAW Q1 – 21 to 48 MB/s
Blackmagic RAW Q3 – 14 to 34 MB/s
Blackmagic RAW Q5 – 9 to 21 MB/s
1920 x 1080 Blackmagic RAW 3:1 – 33 MB/s
Blackmagic RAW 5:1 – 20 MB/s
Blackmagic RAW 8:1 – 13 MB/s
Blackmagic RAW 12:1 – 9 MB/s
Blackmagic RAW Q0 – 25 to 49 MB/s
Blackmagic RAW Q1 – 17 to 40 MB/s
Blackmagic RAW Q3 – 12 to 29 MB/s
Blackmagic RAW Q5 – 8 to 17 MB/sConstant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.
Power Requirements:
Power Supply 1 x External 12V power supply.
External Power Input 1 x 2 pin locking connector.
Battery Type BP-U
Power 11-19.5V

In the Box

Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)
