Blackmagic Design UltraStudio 4K Mini Capture & Playback Unit

AED 4,424.70

  • 12G-SDI & HDMI 2.0 Input/Output
  • 1 x 40 Gb/s Thunderbolt 3 Interface
  • 3″ LCD Status/Preview Screen
  • DCI 4K60 4:2:2 Single-Link 12G-SDI I/O

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: BDLKULSDMINI4K
View All With This Brand: Blackmagic Design

Description

The UltraStudio 4K Mini Thunderbolt 3 from Blackmagic Design links your Thunderbolt 3 computer to any of a variety of video components for capture, playback, or streaming. This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60.

A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini’s Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer. Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.

The UltraStudio Mini 4K Thunderbolt 3 supports both compressed and uncompressed video, is Window, Mac, and Linux compatible, and supports most popular codecs. The UltraStudio 4K Mini also supports 3D capture and playback via HDMI, plus 3D SDI playback at rates up to DCI 4K30. DaVinci Resolve and additional software are included on an SD card. Power the UltraStudio Mini 4K Thunderbolt 3 via its internal 100-240 VAC adapter.

Thunderbolt 3 Connectivity

Lightning-fast Thunderbolt 3 connection with trickle-charging for a connected laptop

Supports up to DCI 4K60 Video

8/10/12-bit HDR capture and playback with multi-rate support from SD to DCI 4K60

Compact Design

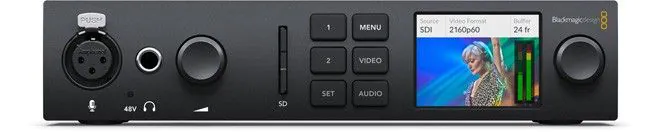

Portable design with front-panel control buttons, LCD with video, audio and status information, XLR mic input, and an SD card slot

Supported Software

  • DaVinci Resolve
  • Adobe Premiere Pro CC, After Effects CC, Photoshop CC
  • Avid Media Composer, Pro Tools
  • Final Cut Pro X
  • Fusion
  • Steinberg Cubase, Nuendo

System Requirements

  • Mac 10.13 High Sierra, 10.14 Mojave, or later
  • Windows 7, 8.1, and 10, all 64-bit
  • Linux

Included Software

See the Includes section for a list of the Mac, Linux, and Windows software on the included SD card

Technical Specification

Blackmagic Design UltraStudio 4K Mini Specs

Video

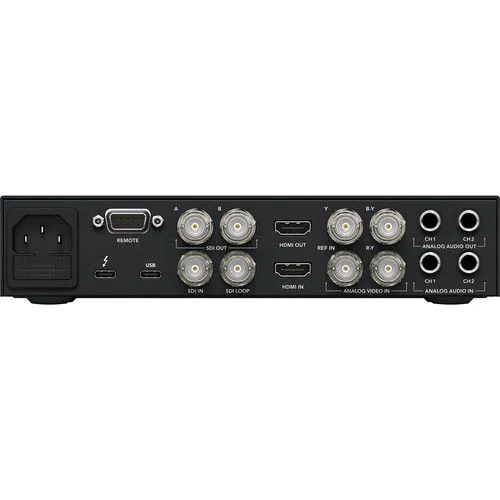

Video Input 1 x BNC. SDI
1 x HDMI Type A, HDMI 2.0b
1 x 3BNC, Component/Composite
1 x BNC, Reference
Video Output 2 x BNC, SDI Program Out
1 x BNC, SDI Loop Out
1 x HDMI Type A, HDMI 2.0b

Supported Video Format

SDI Rate 12G, 6G, 3G, 1.5G, 270 Mb
Supported Video Resolutions SDI Input/Output:
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2KPsF: 30/29.97/25/24/23.98
UHD 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
525i: 59.94
625i: 503D SDI Playback:
DCI 4K: 30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2KPsF: 30/29.97/25/24/23.98
UHD 2K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI Video Sampling 4:2:2, 4:4:4
SDI Color Precision 8-, 10-, 12-Bit RGB 4:4:4 in 2D Modes up to 4Kp30 DCI
8-, 10-Bit YUV 4:2:2 in All 2D Modes
8-, 10-, 12-Bit RGB 4:4:4 in 3D Modes up to 2Kp60 DCI
8-, 10-Bit YUV 4:2:2 in All 3D Modes
SDI Color Space Rec. 601, Rec. 709, Rec. 2020
SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B
SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10, SMPTE ST2108-1
SDI Metadata Support RP 188/SMPTE 12M-2 and Closed Captioning
Supported Video Resolutions HDMI Input/Output:
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
525i: 59.94
625i: 503D HDMI Playback:
DCI 4K: 30/29.97/25/24/23.98
UHD 2K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
HDMI Video Sampling 4:4:4, 4:2:2, 4:2:0
HDMI Color Precision 8-, 10-, 12-Bit

Sync

Sync Input 1 x BNC, Tri-Sync/Black Burst

Interface

Thunderbolt 1 x Thunderbolt 3 Connector
Host Charging: 45 W
USB 1 x USB Type-C, USB 3.1 Gen 1 (Up to 5 Gb/s)

Control

Remote 1 x D-Sub 9, RS-422 (Sony Compatible)

Audio

Audio Input 2 x 1/4″ RCA. Analog Audio
1 x 3-Pin XLR, Mic In (48 V Phantom Power Switchable via Software)
Audio Output 2 x BNC, 3G/HD/SD-SDI
1 x HDMI Type A
Embedded Audio Input/Output:
SDI: 16-Ch
HDMI: 8-Ch
Audio Sampling 24-Bit, 48 kHz

Media

Card Reader Slot 1 x SD Card (UHS-I & UHS-II)

Supported Codecs

Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR
DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX
HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD
Apple ProRes 4444, 422 HQ, 422
Apple ProRes LT, Apple 422 Proxy
Uncompressed: 8‑Bit 4:2:2, 10‑Bit 4:2:2, 10‑Bit 4:4:4

General

Power Requirements, Internal 100 to 240 VAC
Maximum Power Consumption 75.3 W
Environmental Operating Temperature: 32 to 104°F / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Humidity: 0 to 90%, Non-Condensing
Dimensions 8.27 x 7 x 1.8″ / 21 x 17.78 x 4.57 cm
Weight 2.65 lb / 1.2 kg

Packaging Info

Package Weight 3.31 lb
Box Dimensions (LxWxH) 10.6 x 8.6 x 3.6″

In the Box

  • Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
  • SD Software Card
  • DaVinci Resolve (Mac & Windows)
  • Media Express (Mac, Linux, Windows)
  • Disk Speed Test (Mac & Windows)
  • LiveKey (Mac & Windows)
  • Blackmagic Desktop Video Utility (Mac, Linux, Windows)
  • Blackmagic Driver (Mac, Linux, Windows)
  • Limited 3-Year Warranty
