PreorderIn Stock

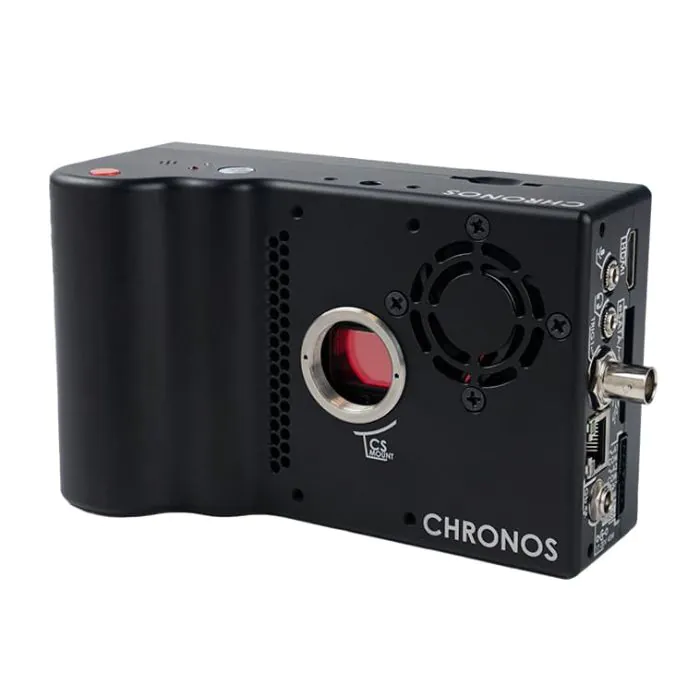

Chronos 2.1-HD 8GB Colour Sensor w/ F-C Adapter

AED 29,116.00

  • HD-Resolution: 1920x1080p @ 1,000FPS max.
  • High Frame-Rate: 4/3″ sensor up to 24,046 FPS at lower resolution.

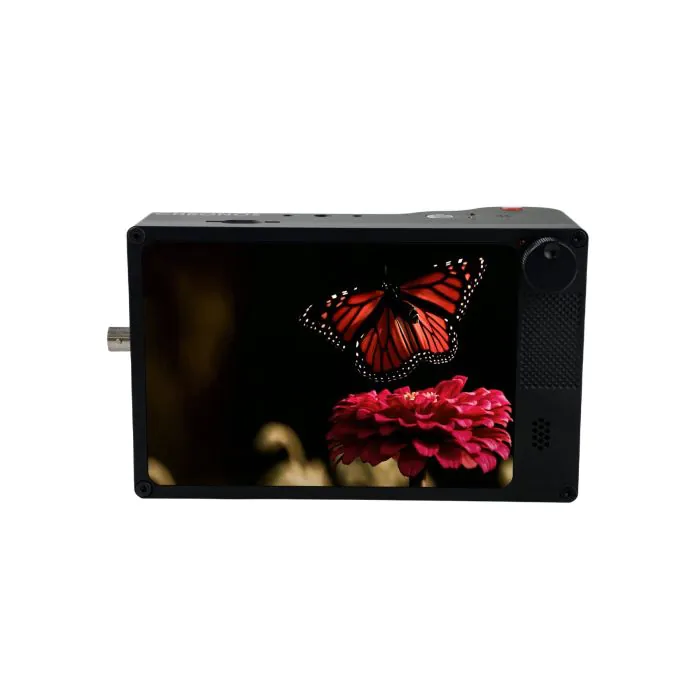

  • All-in-One: Standalone with 5″ touchscreen and battery.
  • Internal Storage: 8GB, 16GB, and 32GB RAM options, with SD card slot.
  • Recording Modes: Standard, Segmented, Running, Gated Burst, Live Slow Motion.
  • Lens Mounting: Nikon F, Canon EF, and C mounts.
  • Color/Monochrome: ISO 500-8,000 (Color), 1,000-16,000 (Monochrome).
  • Trigger Options: I/O ports for synchronization and remote triggering.
  • Focus Peaking: Sharp edges highlighted, zebra lines for exposure.
  • API: Open source REST-based API for custom integration.

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: CR21-1.0-8C-FNL
View All With This Brand: Kron Technologies

Description

The Chronos 2.1-HD high-speed camera offers an all-in-one, high-definition, high frame-rate solution that empowers data analysis from some of the top R&D and Aerospace facilities, Universities, and Media Producers in the world. The budget-friendly camera is ideal for a range of applications and measurement techniques such as Vibration Analysis, Schlieren Imaging, and Particle Image Velocimetry (PIV). Get up and running in minutes with the easy-to-use 5″ touchscreen interface and extend the functionality with accessories such as microscope lenses, and high-speed specific lighting.

Technical Specification

CAMERA
Imaging 1920×1080 @ 1000FPS
Memory 8GB, 16GB, or 32GB
Record Time (in seconds) 2.7 (8GB), 5.5 (16GB), 11 (32GB) at max resolution
Lens Mount CS/C mount (options available)
Backfocus Field adjustable
IR Filter 650nm, user removable, 24 x 16 x 1.1mm
Display 5” 800×480 capacitive touchscreen, 1000 nit daylight visible
Enclosure Anodized CNC machined aluminum
Cooling Active cooling, variable-speed fan (fan-off option)
Dimensions 155mm x 96mm x 67.3mm (6.11” x 3.78” x 2.65”) w/o lens
Weight 1.06 kg (2.34 lbs) without lens



VIDEO FORMATS
H.264 Standardized MP4 files at bitrates up to 60Mbps
Cinema DNG Raw Standard Adobe CinemaDNG raw files
TIFF Standard TIFF raw files with timestamps
Storage Devices SD, USB, SSD, or SMB/NFS network drives



IMAGE SENSOR
Resolution 1920×1080 @ 1000FPS maximum
Speed 2.1Gpx/s
Dimensions 19.2 x 10.8mm (4/3” format, 2.1-Megapixel, 2x Crop Factor)
Pixel Pitch 10um
Sensitivity (ISO) Color – ISO 500 to 8000 Mono – ISO 1000 to 16000
Shutter Electronic global shutter, 1/fps to 10us (1/100,000 s)
Dynamic Range 10.3 stops (62.4 dB)
Bit Depth 12-bit



BATTERY
Type EN-EL4a
Runtime 1 hour recording
Charge Time 2 hours (0-80%) with in-camera charger

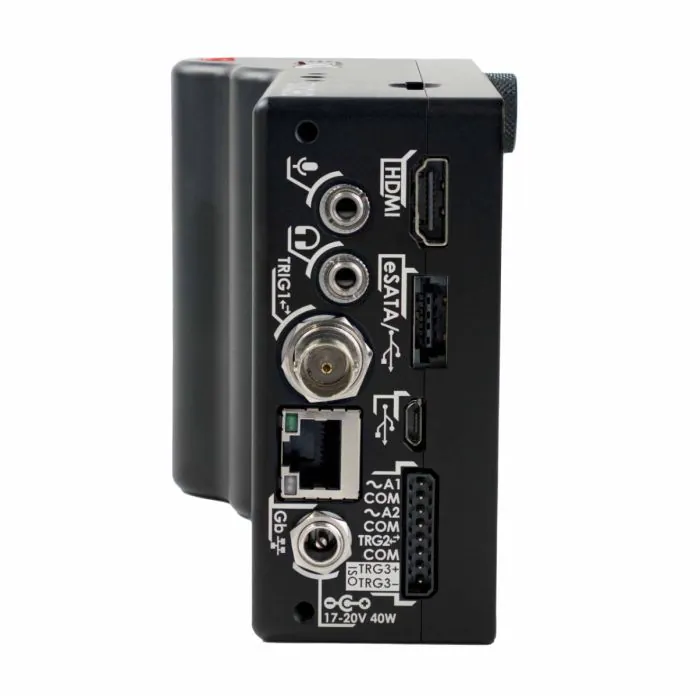

Inputs/outputs
Power Input 17-20V 40W (5.5/2.5mm barrel jack, positive tip)
Network Gigabit Ethernet
Trigger 2 trigger inputs/ frame strobe outputs (BNC & Aux) Adjustable input threshold 0 to 6.6V Electrically isolated trigger input (Aux connector) Trigger with sound, laser, and lightning using accessories
Video HDMI output 720p or 1080p (default) @ 60FPS, video only
USB USB type A (host) and micro-B (device)
SATA eSATA 3Gbps to SATA 2.5” lll SSD (5V power)



TRIGGER MODES
End Trigger Records until a defined delay after trigger
Toggle Starts and stops with button press
Exposure Trigger External signal sets synchronization frame rate
Shutter Gating External signal sets the exposure synchronization and frame-rate
Frame Sync Output Outputs a signal indicating its frame rate and exposure



TRIGGER PORTS
BNC Female BNC connector
AUX Phoenix 1778890 8-pin terminal block connector, including isolated trigger input.



SOFTWARE
Control Through web page or REST interface with USB or CAT ethernet cable
Stream Live or Playback Mode network streaming via RTSP stream and VLC player.
APIs HTTP REST Interface, open-source codebase



NETWORK CONTROL
Network Control Through web page or REST interface with USB or CAT ethernet cable



RECORDING MODES
Normal Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
Segmented Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated Burst Frames are captured while trigger is active



Normal Speed Recording
Continuous Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera.



Assistive
Focus Aid Highlights sharp edges to aid focusing
Zebras Rolling diagonal lines indicate clipped (overexposed) areas
Viewfinder Zoom Zooms in to allow easier focusing
Overlay Displays frame and time information on top of footage



Environmental
Operating Temperature -20 °C to +40 °C (-4 °F to +104 °F)

In the Box

no in the box data
