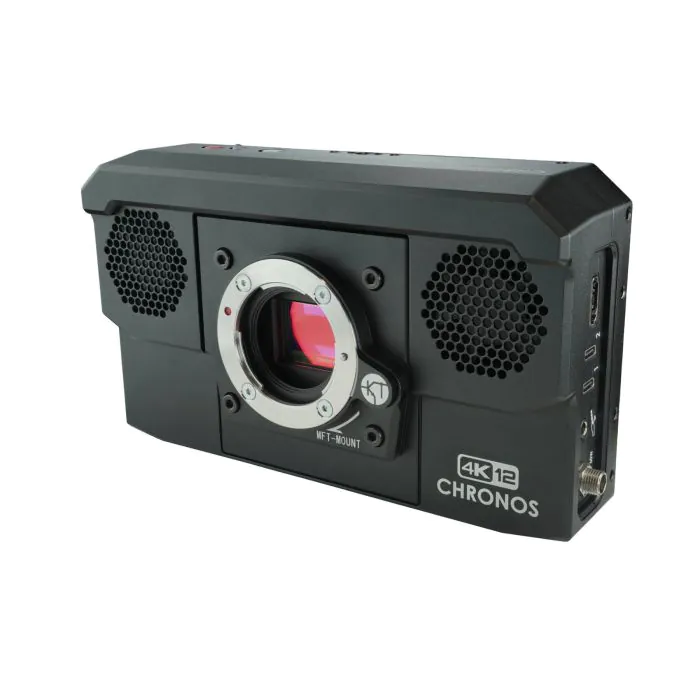

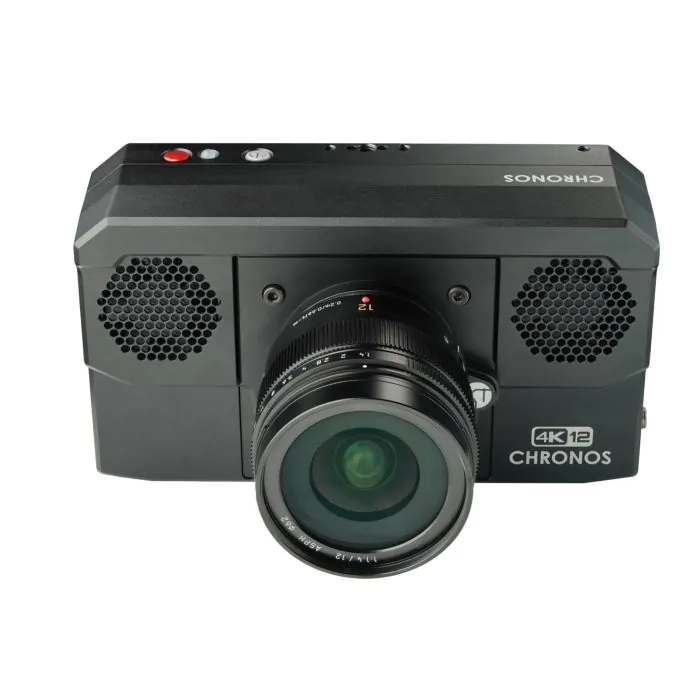

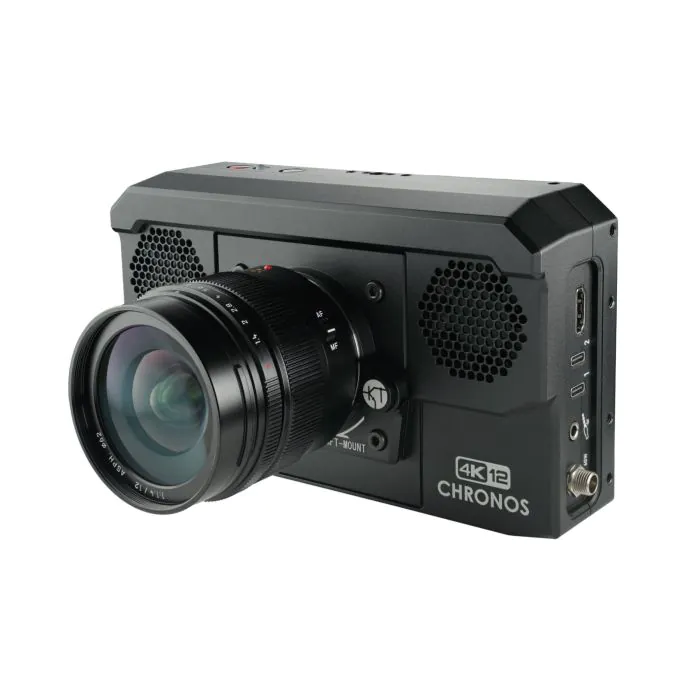

Chronos 4K12 128 GB with Colour Sensor and Micro Four Thirds Lens Mount

AED 68,485.00

Experience the extraordinary capabilities of the Chronos 4K12 high-speed camera, which captures mesmerizing 4K slow-motion video at over 1,000 frames per second.

Designed for peak performance and exceptional value, the Chronos 4K12 is purpose-built to captivate audiences, supercharge data analysis, and foster innovation. Its user-friendly design and portability make it an ideal choice for a wide range of high-speed imaging requirements.

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: CN4K12-1.0-128C-MF
View All With This Brand: Kron Technologies

Description

Experience the extraordinary capabilities of the Chronos 4K12 high-speed camera, which captures mesmerizing 4K slow-motion video at over 1,000 frames per second.

Designed for peak performance and exceptional value, the Chronos 4K12 is purpose-built to captivate audiences, supercharge data analysis, and foster innovation. Its user-friendly design and portability make it an ideal choice for a wide range of high-speed imaging requirements.

Technical Specification

Chronos 4K12 128 GB with Colour Sensor and F Lens Mount

CAMERA
Imaging4096 x 2160 @ 1,397 FPS
Memory128GB
Record Time (in seconds)11 (128GB) at max resolution
Lens MountC, E, F, EF, MFT Plates Available
BackfocusField adjustable via included shim kit
IR Filter650nm, user removable
Display5” 800×480 capacitive touchscreen, 1000 nit daylight visible
EnclosureAnodized CNC machined aluminum
CoolingActive cooling, variable-speed fans
Dimensions188mm x 111mm x 53mm (7.40” x 4.37” x 2.08”) w/o lens
Weight1.32 kg (2.91 lbs) without lens
VIDEO FORMATS
CompressedStandardized H.264 AVC, or H.265 HEVC MPEG-4 Video Files
RawStandard Adobe CinemaDNG raw files
Storage DevicesInternal 1 TB NVMe SSD, SD Card, USB-C SSD, or SMB/NFS network drives
IMAGE SENSOR
Resolution4096 x 2160 @ 1,397 FPS Maximum 128×32 @ 29,002 FPS Minimum
Speed11.8 Gigapixels per second
Dimensions20.74mm x 9.79mm (4/3” format, 10-Megapixel, 2x Crop Factor)
Pixel Pitch4.5um
Sensitivity (ISO)Color – ISO 100
ShutterElectronic global shutter, 1/fps to 1us (1/1,000,000 s)
Dynamic Range11.3 stops (68 dB) in 12-bit mode
Bit Depth8-bit, 10-bit, or 12-bit User Selectable

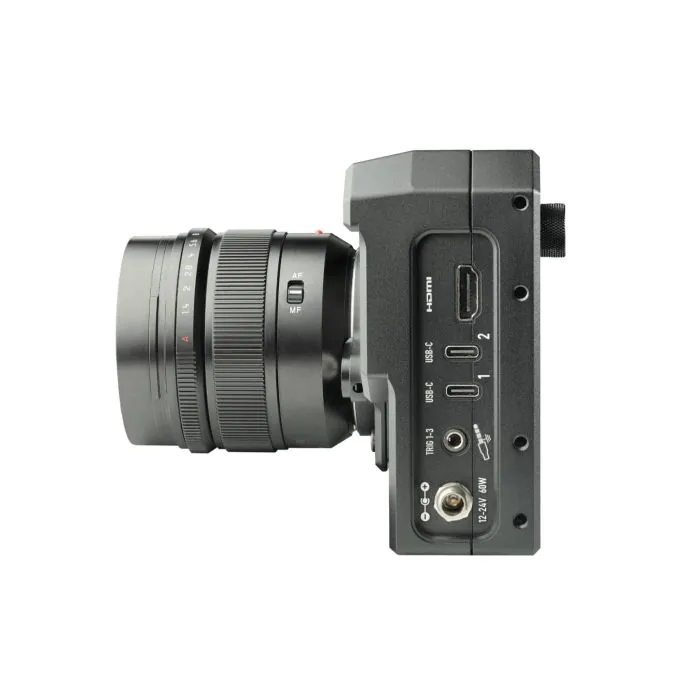

Inputs/outputs
Power Input12-24V 60W (5.5/2.5mm barrel jack, positive tip)
NetworkGigabit Ethernet via USB-C Adapter WiFi via USB-C Adapter
Trigger3 trigger inputs/ frame strobe outputs (4-pin 3.5mm TRRS Connector) Adjustable input threshold 0 to 6.6V. Optional TRRS to BNC splitter cable accessory.
VideoHDMI output 4K @ 30 FPS or HD @ 60 FPS
USBDual USB Type C Ports USB-C Port 1: 3.2 Gen 1, 5 Gbps (PC or Peripheral) USB-C Port 2: 3.2 Gen 2×2, 20 Gbps (Peripheral, SSDs)
TRIGGER MODES
End TriggerRecords until a defined delay after trigger
ToggleStarts and stops with button press
Exposure TriggerExternal signal sets synchronization frame rate
Shutter GatingExternal signal sets the exposure synchronization and frame-rate
Frame Sync OutputOutputs a signal indicating its frame rate and exposure
SOFTWARE
ControlDesktop, iOS, and Android Apps coming soon. Connect via optional Ethernet or WiFi adapters.
StreamLive or Playback Mode network streaming via RTSP stream.
APIsHTTP REST Interface, Open-source codebase
NETWORK CONTROL
Network ControlThrough control apps or REST API via optional Ethernet or WiFi adapters.
RECORDING MODES
NormalRecords into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
SegmentedVideo memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated BurstFrames are captured while trigger is active
Normal Speed Recording
ContinuousVideo is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera.
Assistive
Focus AidHighlights sharp edges to aid focusing
ZebrasRolling diagonal lines indicate clipped (overexposed) areas
HistogramGraphically represent brightness and distribution of light in the image
Viewfinder ZoomZooms in to allow easier focusing
OverlayDisplays frame and time information on top of footage
Environmental
Operating Temperature0 °C to +40 °C (32 °F to +104 °F)

In the Box

  • Chronos 4K12 Camera Body
  • Mount Plate
  • Lens Mount Shim Kit
  • 3.0mm Allen Key
  • Trigger Switch Cable
  • 3.5mm to Dual-BNC Adapter Block
  • SD Card
  • D-Tap to Barrel Jack Cable
  • 3.5mm to 4-pin Terminal Block
  • 90W DC Power Supply
  • Region-Specific Power Cord
  • Quickstart Guide
  • Certificate of Quality
  • Nanuk 920 Carrying Case
