In Stock

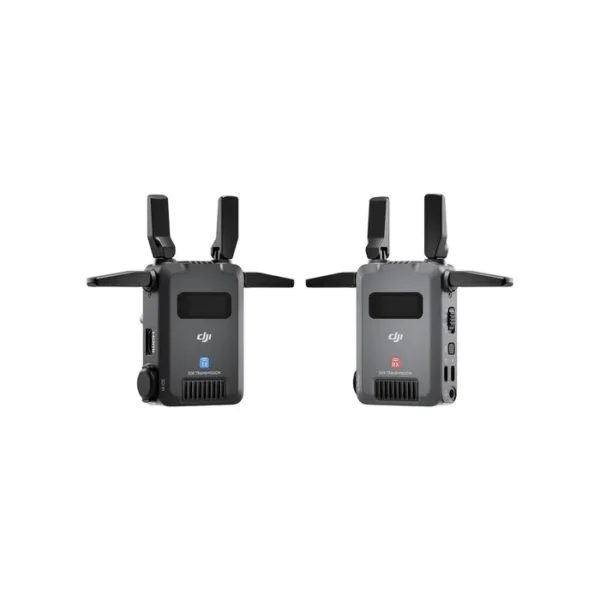

DJI SDR Transmission Combo

AED 2,299.50

  • Complete Receiver/Transmitter System
  • SDR Tri-Bandwidth Technology
  • DFS, 2.4 & 5.8 GHz with Auto Hopping
  • Up to 1080p60 Resolution
  • Range of up to 1.9 Miles
  • Broadcast & Control Modes
  • Ronin Compatible
  • HDMI, SDI & USB-C Connections
  • High Bit Rate up to 20 Mb/s
  • 35ms Low Latency
Wishlist
SKU: CP.RN.00000397.02
View All With This Brand: DJI

Description

DJI SDR Wireless Video Transmission System Overview

When filming on small-to-medium-sized sets, everything you need for stable, high-quality video transmission is included in the DJI SDR Transmission Combo. This complete system comprises an SDR transmitter for your camera rig and a receiver for an optional monitor or tablet. Using their proprietary SDR (Software Defined Radio) technology, the system sends footage at up to 1080p60 quality over three frequencies: DFS, 2.4 GHz, and 5.8 GHz. Combined with automatic frequency hopping, this signal is engineered for high penetration and long distances of up to 1.9 miles. When faced with crowded sets and dense architecture, this combo is a much more reliable option than some conventional consumer Wi-Fi solutions.

Broadcast Mode
Using this mode, you can add an unlimited amount of additional SDR receivers to your system. It also supports rapid switching between multiple camera indexes and offers Wi-Fi support for one or two flexible monitoring alternatives as needed.
Control Mode
This mode supports stabilizer control (virtual joystick, gimbal recentering, etc.) and camera control (PTP control and Sony camera virtual menu).
Additional Features
  • Built-in status display
  • Transmits footage and metadata
  • Ronin compatible
  • Low 35ms latency
  • High bit rate up to 20 Mb/s
  • HDMI, SDI, and USB-C output

Technical Specification

DJI SDR Wireless Video Transmission System Specs

Key Specs
Video I/O
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (Unspecified SDI) Input
Transmitter: 1x USB-C (Unspecified Signal) Input
Receiver: 1x HDMI (Unspecified Signal) Output
Receiver: 1x BNC (Unspecified SDI) Output
Receiver: 1x USB-C (Unspecified Signal) Output
Latency
35 ms
Video Format
HDMI/SDI/USB
1080p: 60
Inputs / Outputs
Video I/O
Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (Unspecified SDI) Input
Transmitter: 1x USB-C (Unspecified Signal) Input
Receiver: 1x HDMI (Unspecified Signal) Output
Receiver: 1x BNC (Unspecified SDI) Output
Receiver: 1x USB-C (Unspecified Signal) Output
Audio I/O
Transmitter/Receiver: 1x 1/8″ / 3.5 mm Output
Wireless
Wireless Range
1.9 Miles / 3 km
Latency
35 ms
Format Support
Video Format
HDMI/SDI/USB
1080p: 60
Packaging Info
Package Weight
0.93 lb
Box Dimensions (LxWxH)
4.95 x 4.3 x 2.8″

In the Box

  • DJI SDR Transmission Combo
  • Transmitter Gimbal Mounting Adapter Plate
  • Transmitter Camera Mounting Adapter Place
  • USB-A to USB-C Cable (16.9″)

Not in the Box

  • Essential Batteries & Chargers (Not Included)
