Description

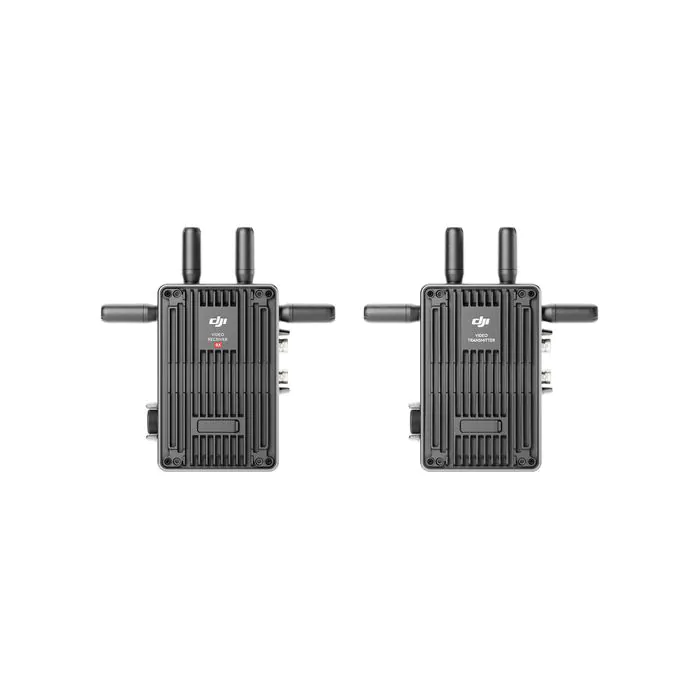

DJI Wireless Video Transmission Standard Comb… Overview
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Transmission Standard TX/RX Combo from DJI. The combo includes a transmitter and a receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance.
The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to multiple receivers, including the High-Bright Remote Monitor. The system also can be used with talkback via the USB-C ports and optional headsets. The units can be powered via a WB37 battery, L-series battery, or a DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.
DJI Wireless Video Transmitter
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Wireless Video Transmitter from DJI. The transmitter pairs with a separately available monitor/receiver and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance.
The transmitter supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. The transmitter can be powered via an optional L-series battery, WB37 battery, or its DC power input, or it can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.

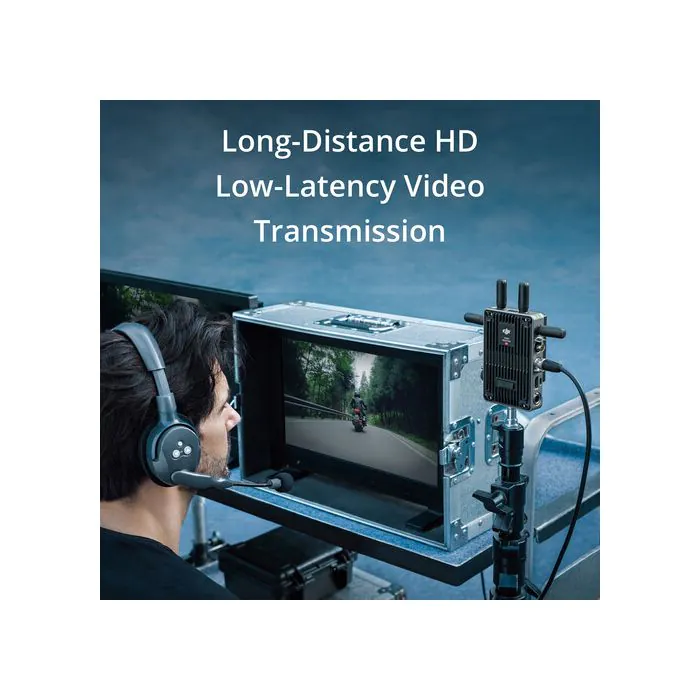

Long-Distance HD Live Feed
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000′ on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.

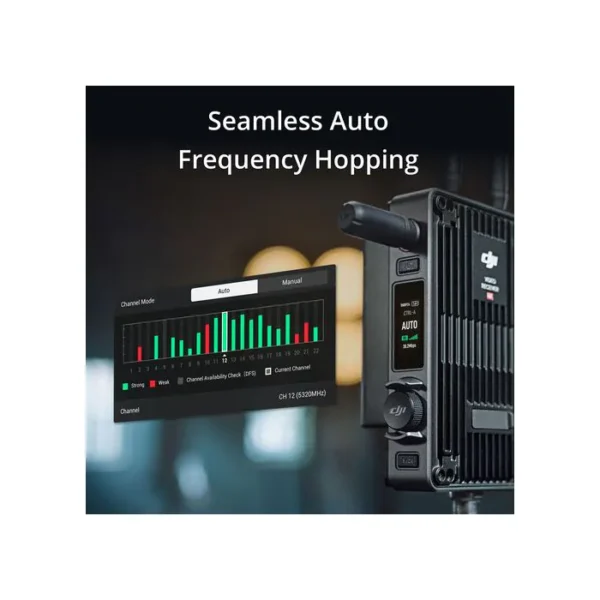

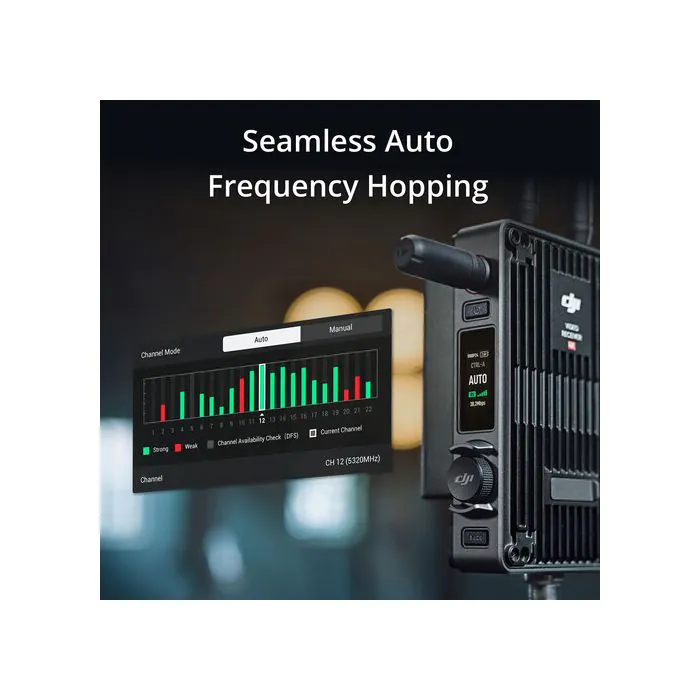

Seamless Auto Frequency Hopping
- O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
- DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
- With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
- By mounting high-gain antennas, transmission capability is further boosted.

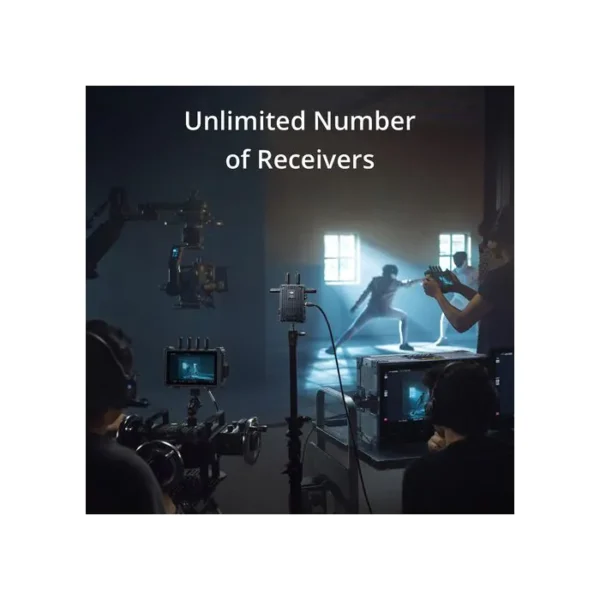

One Transmitter with Multiple Receivers for Coordinated Shooting
- Two transmission modes are available.
- In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
- Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
- On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that’s difficult to get with traditional transmission setups.
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI’s self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.
DJI Wireless Video Receiver
Receive high-definition video from over 3 miles (line-of-sight) away from your DJI video transmitter with this Wireless Video Receiver from DJI. The receiver pairs with a separately available transmitter and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. The receiver also supports talkback/voice calling between ends using the USB-C ports and optional mics.
The receiver supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to simultaneously receive alongside other receivers such as the High-Bright Remote Monitor, and the separately available transmitter can transmit to unlimited receivers in broadcast mode with a slightly lower performance. The receiver can be powered via an optional L-series battery, an optional WB37 battery, or its DC power input.
Long-Distance HD Live Feed
The DJI Transmission receiver incorporates O3 Pro video transmission technology, which offers an incredible 20,000′ on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
After linking it with the DJI Video Transmitter in Control mode, set the USB-C function on both the transmitter and receiver to Voice Call. Connect headphones with a built-in mic to the USB-C ports on the transmitter and receiver to enable voice calls.
End-to-End Ultralow Latency
The video receiver uses the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultralow transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.
The DJI Video Receiver is suitable for use with third-party remote monitors and can directly output video signals through HDMI or SDI ports without extra expansion modules. Compared with the DJI High-Bright Remote Monitor, the DJI Video Receiver now supports metadata transmission and video output at fractional frame rates, meeting the professional, cinema-grade requirements of large production crews.
Seamless Auto Frequency Hopping
- O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
- DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
- With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
- By mounting high-gain antennas, transmission capability is further boosted.
One Transmitter with Multiple Receivers for Coordinated Shooting
- Two transmission modes are available.
- In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
- Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
- On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that’s difficult to get with traditional transmission setups.
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI’s self-developed chip and transmission protocol, DJI Transmission is able to ensure the security of your footage.
DJI WB37 Battery Charging Hub (USB Type-C)
Keep your WB37 batteries charged with the WB37 Battery Charging Hub from DJI. This hub uses a USB Type-C port for charging.
DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh)
This WB37 LiPo Battery Pack for Select DJI Accessories from DJI has a 4920mAh capacity that provides enough power to run a CrystalSky monitor for up to 4-6 hours or a Cendence remote controller for up to 4 hours. If you have a 5.5″ CrystalSky, then you will get between 5-6 hours of battery life, while 7.85″ CrystalSky monitors will get 4-5 hours. It’s also compatible with other DJI products, such as the Transmission Combo and FPV remote. DJI has engineered this battery to charge quickly and have an excellent discharge rate at low temperatures.
Technical Specification
DJI Wireless Video Transmitter Specs
Key Specs
| Video I/O | 1 x BNC (3G-SDI) Input
1 x HDMI 1.4 Input
1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI/SDI |
| Power Consumption | 11 W |
| Mounting | 1 x Cold Shoe
1 x 3/8″-16 Female
2 x 1/4″-20 Female |
Inputs / Outputs
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x BNC (3G-SDI) Input
1 x HDMI 1.4 Input
1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power I/O | 1 x USB-C Input
1 x Barrel Input |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 3.7 Miles / 6 km (Line-of-Sight) |
| # of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz |
| Latency | 68 ms |
| RF Power | < 33 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | None |
| Mobile App Compatible | No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
Power
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 11 W |
Mounting
| Mounting | 1 x Cold Shoe
1 x 3/8″-16 Female
2 x 1/4″-20 Female |
Environmental
| Environmental Protection | None |
| Certifications | CE, FCC |
| Operating Temperature | 22 to 77°F / -10 to 45°C |
General
| Dimensions | 5 x 3.4 x 1″ / 127 x 87 x 26 mm |
| Weight | 12.3 oz / 350 g |
Packaging Info
| Package Weight | 2.74 lb |
| Box Dimensions (LxWxH) | 12.8 x 8.4 x 4.2″ |
DJI Wireless Video Receiver Specs
Key Specs
| Video I/O | 1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output |
| Embedded Audio | HDMI/SDI |
| Power Consumption | 9 W |
Inputs / Outputs
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power I/O | 1 x USB-C Input
1 x Barrel Input |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 3.7 Miles / 6 km (Line-of-Sight) |
| # of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz |
| Latency | 70 ms |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | None |
| Mobile App Compatible | No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
Power
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x L-Series, DJI WB37 (Interchangeable Mount) |
| Power Consumption | 9 W |
Environmental
| Certifications | CE, FCC |
| Operating Temperature | 22 to 77°F / -10 to 45°C |
General
| Dimensions | 5 x 3.4 x 1″ / 127 x 87 x 26 mm |
| Weight | 12.3 oz / 350 g |
Packaging Info
| Package Weight | 1.94 lb |
| Box Dimensions (LxWxH) | 7.8 x 7 x 2.9″ |
DJI WB37 Battery Charging Hub (USB Type-C) Specs
Power
| Power Source | USB (Not Included) |
| Power I/O | 1 x USB Type-C Input |
Packaging Info
| Package Weight | 0.32 lb |
| Box Dimensions (LxWxH) | 5.2 x 2.7 x 2″ |
DJI WB37 LiPo Battery Pack For Select DJI Accessories (7.6V, 4920mAh) Specs
| Compatibility | DJI CrystalSky / High-Bright Remote Monitor / Cendence Remote Controller / Video Transmitter / FPV Remote Controller / Transmission |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 4920 mAh / 37.39 Wh |
| Battery Configuration | 2 S / 7.6 V |
Packaging Info
| Package Weight | 0.47 lb |
| Box Dimensions (LxWxH) | 5.1 x 3.2 x 1.85″ |
