FeelWorld 17.3″ Live Stream HD Broadcast Director Monitor (Desktop Stand)

AED 4,278.75

  • 1920 x 1080 Resolution, 300 cd/m²
  • 4 x 3G-SDI Inputs, Quad-Split Display
  • 1 x HDMI & 4 x 3G-SDI Outputs
  • V-Mount Battery Plate
  • GPI Input/Output, RS-485 Control Port
  • 178° Viewing Angle
  • 700:1 Contrast Ratio

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: ATEM173S
View All With This Brand: FeelWorld

Description

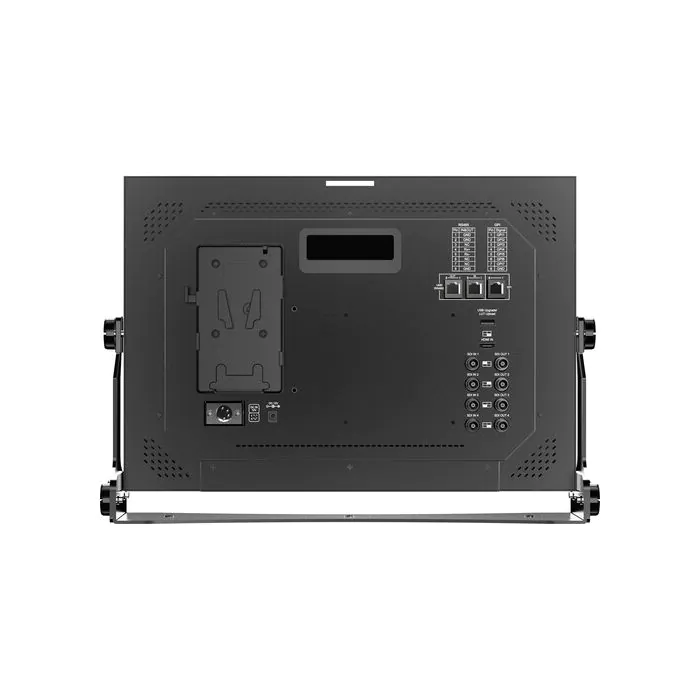

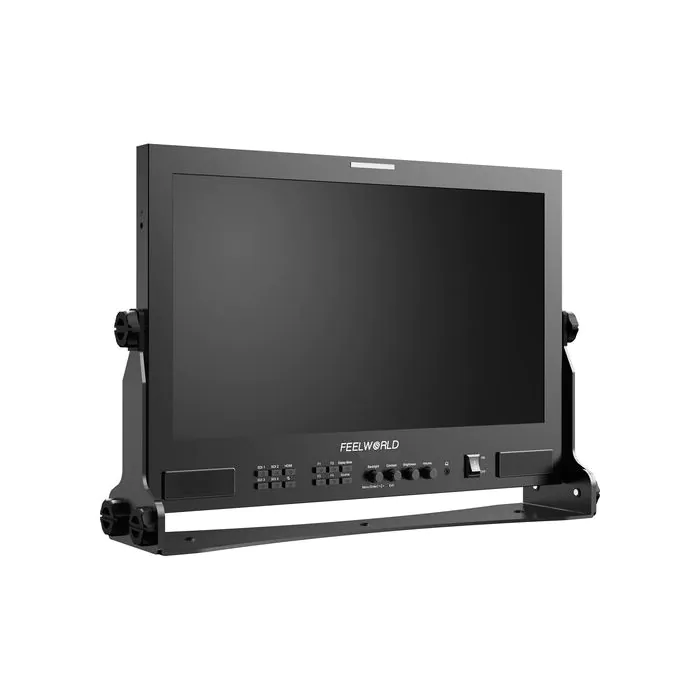

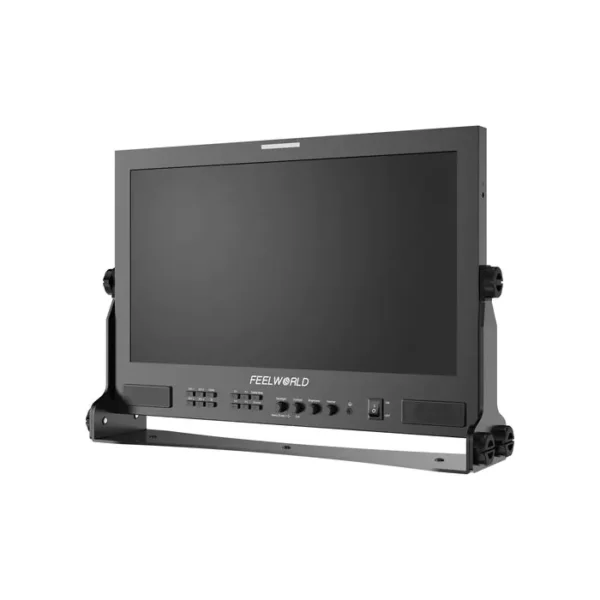

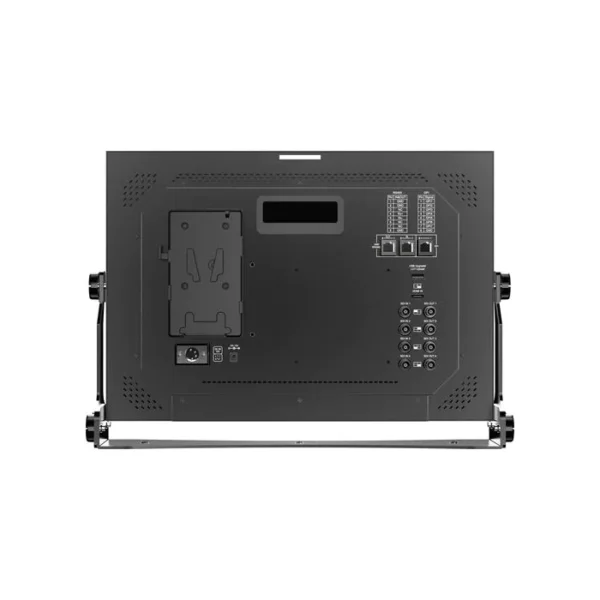

The 17.3″ Live Stream HD Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 300 cd/m2 brightness. The rear panel contains four 3G-SDI inputs that support up to 2K input, there are four 3G-SDI outputs and one HDMI output, and it supports quad-view, dual-view, and PiP display layouts so you can view inputs simultaneously. A desktop stand is included and allows you to adjust the monitor’s tilt angle.

Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field when you are away from a mains source, and a separately available Gold mount plate is also available. A VESA mounting pattern is on the back for alternate mounting options.

Image Features
  • Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
  • Peaking focus assist
  • False color
  • Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
  • Display rotate (0, 90, 180, 270°, H/V mirror)
  • Check field (red, green, blue, mono)
  • Image freeze
  • Zoom
  • Pixel-to-pixel
  • Center marker
  • Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
  • Line color (red, green, blue, white)

Technical Specification

FeelWorld ATEM173 Specs

Display
Panel TypeIPS-Type LCD
Display Size17.3″ / 43.9 cm
Resolution1920 x 1080
Aspect Ratio16:9
Viewing AngleHorizontal: 178° (89/89)
Vertical: 178° (89/89)
TouchscreenNo
Maximum Brightness300 cd/m2
Contrast Ratio700:1
Dot Pitch0.1989 x 0.1989 mm
HDR CompatibilityYes
Pixels Per Inch (ppi)127 ppi
Image ControlsAnamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split – Half, Screen Split – Quarter
Video I/O4 x BNC (3G-SDI) Input
4 x BNC (3G-SDI) Output
1 x HDMI Output
Audio I/O1 x 1/8″ / 3.5 mm Headphone Output
Built-In SpeakerNone
Power I/O1 x Barrel (12 VDC) Input
1 x XLR 4-Pin Input
Other I/O1 x RJ45 (GPI) Input
1 x RJ45 (GPI) Output
1 x RJ45 (RS-485) Input
1 x USB-A 2.0 Input
Media/Memory Card SlotNone
Wi-FiNone
Format Support
Video FormatSDI (8-Bit)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
Gamma CurveRec709
Power
DC Input Power12 VDC
Battery Type1 x V-Mount (Interchangeable Mount)
Power Consumption22 W
Mounting
Mounting-Hole Pattern100 x 100 mm, 75 x 75 mm
Environmental
Operating Temperature14 to 122°F / -10 to 50°C
Storage Temperature-4 to 140°F / -20 to 60°C
General
Dimensions16.7 x 11.7 x 0.9″ / 42.5 x 29.6 x 2.3 cm, Excluding Bracket
Weight6.26 lb / 2.84 kg, Excluding Bracket
Packaging Info

In the Box

  • FeelWorld 17.3″ Live Stream HD Broadcast Director Monitor (Desktop Stand)
  • Power Adapter
  • V-Mount Battery Plate
  • Mini-HDMI Cable
  • SDI Cable
  • Sun Hood
  • Desktop Stand
  • Limited 1-Year Warranty
