Description

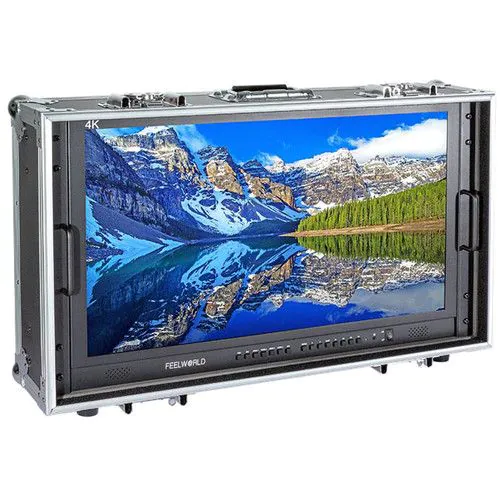

The 28′ 4K Quad View Carry-On Broadcast Monitor from FeelWorld displays up to four 4K signals simultaneously from among any of its inputs. It features an HDMI 2.0 input that supports up to UHD 4K60 resolution, three HDMI 1.4 inputs that support up to UHD 4K30, and 3G-SDI, VGA, and DVI inputs. Via an easy-to-use on-screen menu, you can select a left/right split of two signals, top/bottom split, picture-in-picture split with the second signal adjustable in size and position, and quad split. These selections can also be made via the front panel buttons, which include four assignable function buttons. The other connections consist of RCA audio inputs, a 3G-SDI output, a tally port, and a headphone jack, and there are built-in speakers. Image analysis functions include peaking focus assist, zoom, pixel-to-pixel, and more. There are also built-in red/green/yellow LED tally indicators.

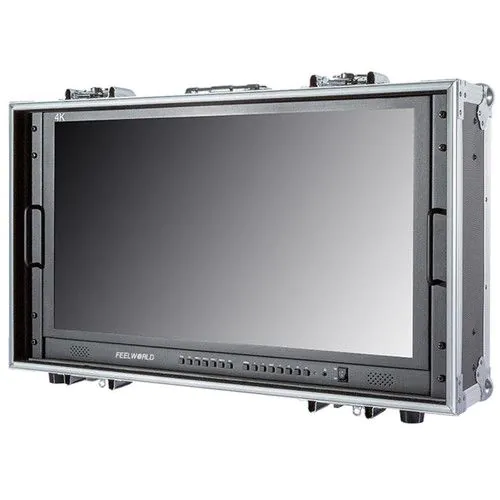

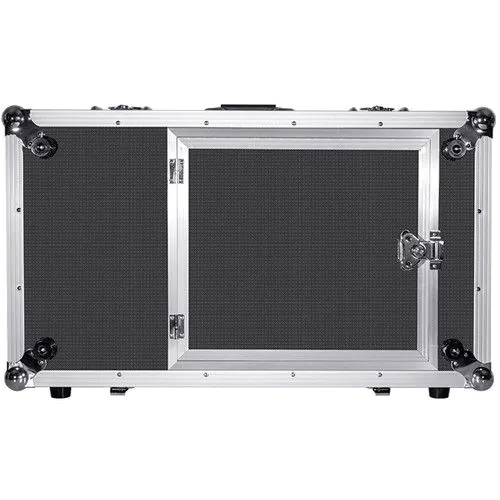

This monitor is designed as a comprehensive all-in-one solution. It comes screwed into a metal case that ensures optimal heat dissipation while providing all-around protection. The lid comes off completely when you unlock it at four locking points, and the remainder can be safely set on a flat surface wherever you are. Via a carry handle on the case, the monitor can be conveniently carried from place to place. A door on the rear of the case opens to provide access to all the connections and the integrated V-mount plate. A large collapsible sunshade is included for use outdoors or in bright indoor conditions. Alternatively, the monitor can be unscrewed from the case and installed into a rack via the built-in handles and built-in rack ears.
Key Features
- Displays up to four 4K signals simultaneously
- Protective metal case ensures optimal heat dissipation
- Removable from metal case and rack-mountable via built-in rack ears and handles
- HDMI 2.0 input supporting up to UHD 4K60
- Three HDMI 1.4 inputs support up to UHD 4K30
- 3G-SDI, VGA, DVI, and RCA audio inputs
- 3G-SDI output
- Tally port
- Built-in red/green/yellow LED tally indicators
- 3.5mm stereo headphone jack
- Built-in speakers
- Integrated V-mount plate
- 170° / 160° viewing angle
- 300 cd/m² brightness
- Color depth: 1.07 billion colors
- Includes collapsible sunshade
Image Analysis Functions
- Peaking focus assist
- False color
- Overscan
- Image flip (0, 90, 180, 270°)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96, 2.35:1)
- Line color (red, green, blue, white)
- Color temperature adjustment
