In Stock

PORTKEYS HS8 8″ 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

AED 1,606.99

  • 8″ HDMI & 3G-SDI 1920 x 1200 Monitor
  • Supports up to DCI 4K24 Input
  • 1100 cd/m² Bright, 1000:1 Contrast Ratio
  • 10-Bit Color, 3D LUT Out on HDMI & SDI
  • 4K HDMI/3G-SDI Input & Loop-Out
  • HDMI to SDI & SDI to HDMI Conversion
  • Heat-Dissipating Aluminum Housing
  • Peaking, Histogram, Waveform, Zebra
  • Mount for Select Video Transmitters
  • Dual L-Series Battery Plates & DC Port
Wishlist
SKU: HS8
View All With This Brand: Portkeys

Description

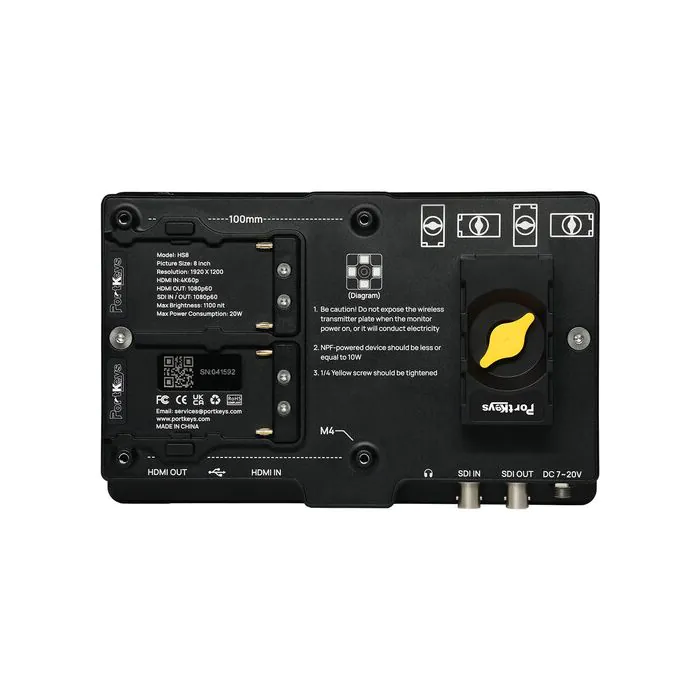

View your video capture with 3D LUT output using the HS8 8″ 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

HDMI and 3G-SDI Input/Output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs
3D LUT Support
3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs
Hi-Bright Monitor
8″ on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio
Durable Housing

Technical Specification

PORTKEYS HS8 Specs

Key Specs
Display Size
8.0″ / 20.3 cm
Native Resolution
1920 x 1200
Touchscreen
No
HDR Support
Yes
Video I/O
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
Media/Memory Card Slot
No
Video Format
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
1080PsF: 30/29.97/25/24/23.98
SDI (4:4:4/4:2:2)
1080i: 60/59.94/50
720p: 60/59.94/50
Battery Type
2x L-Series
Power Consumption
20 W (Maximum)
Mounting
2x 1/4″-20 Female
Display
Panel Type
LCD
Display Size
8.0″ / 20.3 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
1100 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
Yes
Pixels Per Inch (ppi)
283 ppi
Color Gamut
100% Rec. 709
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
SDI
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Power I/O
1x Barrel (20 VDC) Input
Other I/O
1x USB-A (LUT Upload)
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
1080PsF: 30/29.97/25/24/23.98
SDI (4:4:4/4:2:2)
1080i: 60/59.94/50
720p: 60/59.94/50
Video Signal Conversion
HDMI to SDI

SDI to HDMI

Power
Input Power
7 to 20 VDC
Battery Type
2x L-Series
Power Consumption
20 W (Maximum)
Mounting
VESA Mounting-Hole Pattern
100 x 100 mm
Mounting
2x 1/4″-20 Female
General
Material of Construction
Aluminum
Dimensions
81.9 x 52.6 x 19.9″ / 208 x 133.7 x 50.5 cm
Weight
23.81 oz / 675.00 g
Packaging Info
Package Weight
2.44 lb
Box Dimensions (LxWxH)
9.6 x 7.3 x 2.6″

In the Box

  • PORTKEYS HS8 8″ 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
  • D-Tap to DC Barrel Power Cable
  • Screen Cleaning Cloth
  • M2 Allen Key
  • 4 x M3 Allen Screw
  • 4 x Cup Head Gasket
  • Micro-USB Flash Drive
  • Limited 1-Year Manufacturer Warranty
