In Stock

SanDisk Professional 160TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 20TB, Thunderbolt 3 & USB 3.2 Gen 2)

AED 33,000.00

  • 8 x 20TB Ultrastar Enterprise 3.5″ HDDs
  • 8 x SATA III 3.5″ Drive Bays
  • Dual Thunderbolt 3 Ports
  • RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
  • Preconfigured as RAID 5
  • Hardware RAID Controller
  • Sequential Read Speeds up to 1900 MB/s
  • Sequential Write Speeds up to 2000 MB/s
  • Preformatted for macOS 11 and Later
  • Windows 10+ Compatible via Reformat
Wishlist
SKU: SDPH48H-160T-MBAAB
View All With This Brand: Tamron

Description

SanDisk Professional 160TB G-RAID Shuttle 8 8-Bay Thunderbolt 3 RAID Array

At Pixon Media Trading, we deliver enterprise-grade storage solutions engineered for today’s high-resolution production environments. The SanDisk Professional 160TB G-RAID Shuttle 8 is a powerful, transportable RAID system designed for filmmakers, photographers, and post-production professionals who demand speed, capacity, and reliability—whether working on location or in the studio.

Built around eight 20TB 7200 rpm Ultrastar enterprise-class hard drives, the Shuttle 8 provides massive storage capacity and exceptional performance to handle multi-stream 4K, 8K, and VR workflows with confidence. Its rugged, portable chassis makes it ideal for mobile productions, while Thunderbolt 3 connectivity ensures seamless integration into professional workstations.

Colossal Capacity, Transportable Design

With an impressive 160TB total capacity, the G-RAID Shuttle 8 offers high-powered RAID storage in a compact, easy-to-transport enclosure. This makes it a premium solution for content creators who need large-scale storage without sacrificing mobility or durability.

High-Speed Data Transfers

Designed for demanding workflows, the Shuttle 8 delivers sequential read and write speeds of up to 1900 MB/s, enabling smooth playback and fast file transfers for high-resolution media. When configured as RAID 5, it achieves read speeds of up to 1690 MB/s and write speeds of up to 1490 MB/s, ensuring an optimal balance between performance and data protection.

Built-In Hardware RAID

The Shuttle 8 features a dedicated hardware RAID controller supporting a wide range of RAID configurations, including RAID 0, 1, 1E, 5, 6, 10, 50, and 60, as well as JBOD. This flexibility allows users to tailor the system for maximum performance, redundancy, or capacity based on project requirements. The unit ships preconfigured as RAID 5 and formatted for macOS 11 and later, with support for Windows 10 and later via reformatting.

Enterprise-Class Drive Reliability

Inside the enclosure are eight removable Ultrastar enterprise-class 7200 rpm hard drives, built for sustained performance and mission-critical workloads. These drives are engineered for reliability under heavy use, making the Shuttle 8 a dependable solution for production, backup, and archival storage.

Daisy-Chaining & Workflow Expansion

Equipped with dual 40 Gb/s Thunderbolt 3 ports, the Shuttle 8 allows you to daisy chain up to five additional devices, including external drives and 4K displays, all through a single cable connection. This keeps workstations clean and efficient while expanding connectivity options.

USB Power Delivery Convenience

With support for up to 85W USB Power Delivery, the Shuttle 8 can charge compatible MacBook and MacBook Pro systems directly through the Thunderbolt 3 connection, reducing cable clutter and eliminating the need for a separate power adapter.

Additional Details

  • 160TB total capacity (8 × 20TB Ultrastar enterprise-class HDDs)

  • Thunderbolt 3 interface with dual ports

  • Preconfigured RAID 5 for balanced performance and redundancy

  • Supports multi-stream 4K, 8K, and VR workflows

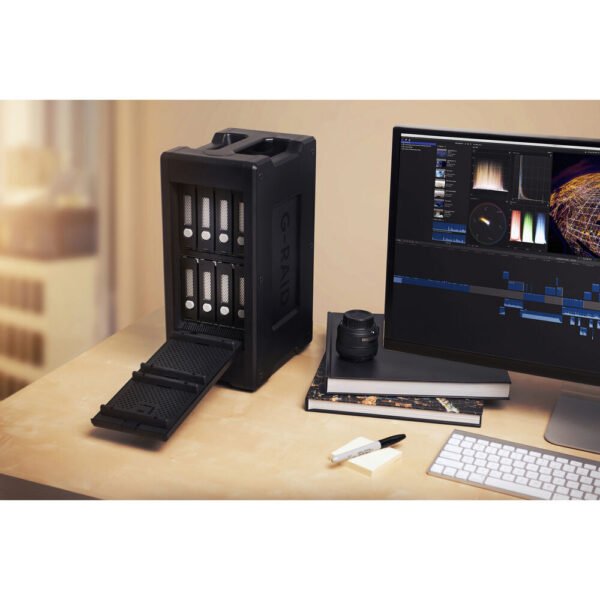

  • Removable drive design for serviceability

  • Includes Thunderbolt 3 cable and IEC power cable

Note: Apple M1 systems require installation of the SanDisk G-RAID Shuttle driver prior to use.

Technical Specification

Storage Capacity
160 TB
Included Drives
8x 20 TB SATA III 3.5″ HDD 7200 RPM
RAID
Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / 10 / 50 / 60 / 1E / JBOD (Preconfigured in RAID 5)
Number of Bays
8x 3.5″ SATA III
Inputs/Outputs
2x USB-C Thunderbolt 3 (40 Gb/s)
Drives
Storage Capacity
160 TB
Included Drives
8x 20 TB SATA III 3.5″ HDD 7200 RPM
RAID
Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / 10 / 50 / 60 / 1E / JBOD (Preconfigured in RAID 5)
Transfer Rates
1900 MB/s (Read in RAID Mode Unspecified)
2000 MB/s (Write in RAID Mode Unspecified)
1690 MB/s (Read in RAID 5)
1490 MB/s (Write in RAID 5)
General
Number of Bays
8x 3.5″ SATA III
Inputs/Outputs
2x USB-C Thunderbolt 3 (40 Gb/s)
Media Card Slots
No
PCI Expansion
No
Software
OS Compatibility
macOS 11 or Later
Windows 10 or Later
Default OS Support
macOS
Security
Encryption
No
Security Features
No
Electrical
Input Power
100 to 240 VAC, 50 / 60 Hz at 2 to 4 A
Physical
Operating Conditions
41 to 95°F / 5 to 35 at 5 to 80% Humidity
Certifications
BIS, BSMI, CE, EAC, FCC-ICES, KC, RCM, SABER, UKCA, VCCI

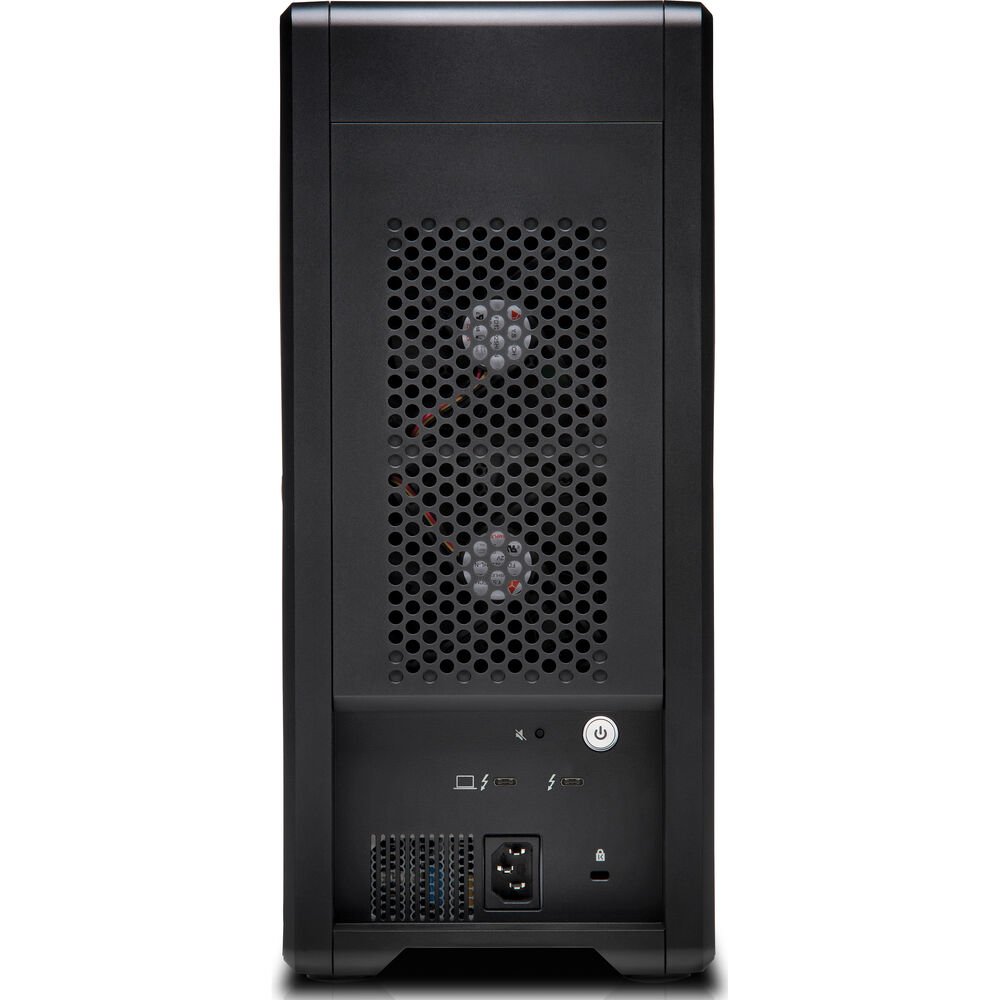

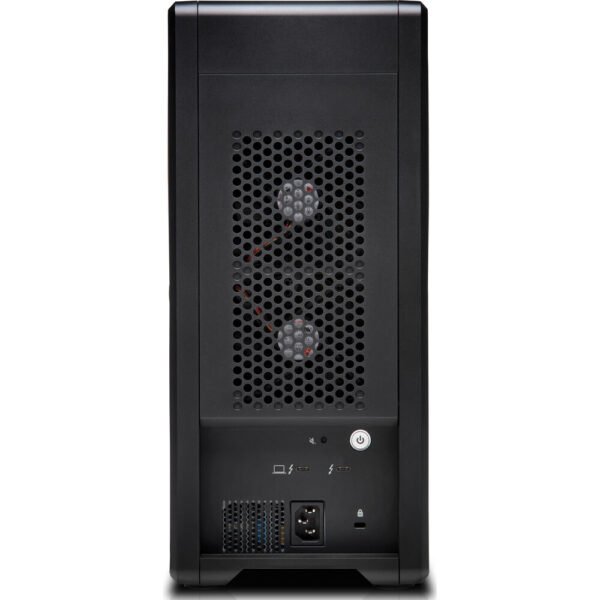

Cooling
2x Fans
Dimensions
15.16 x 9.65 x 6.89 / 38.51 x 24.51 x 17.5 cm
Weight
27.3 lb / 12.4 kg
Packaging Info
Package Weight
34.205 lb
Box Dimensions (LxWxH)
20.4 x 16.1 x 12.6″

In the Box

  • SanDisk Professional 160TB G-RAID Shuttle 8 8-Bay Thunderbolt 3 RAID Array (8 x 20TB)
  • Thunderbolt 3 Cable
  • IEC Power Cable
  • Limited 5-Year Manufacturer Warranty
