Description

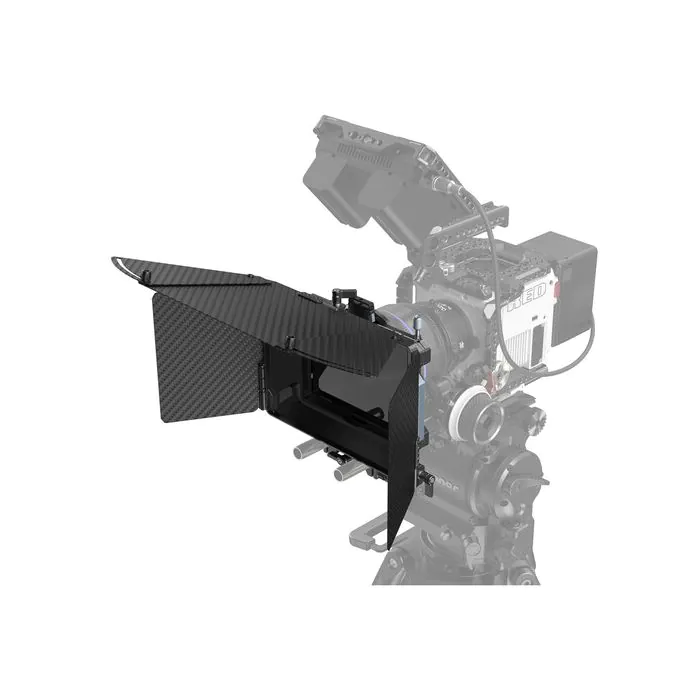

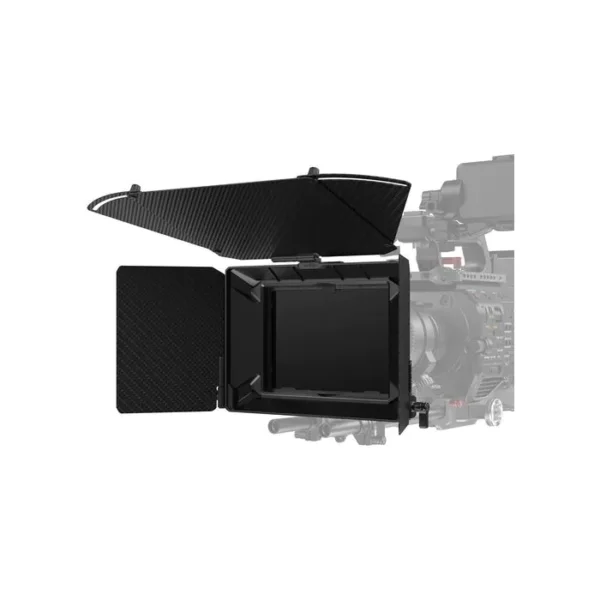

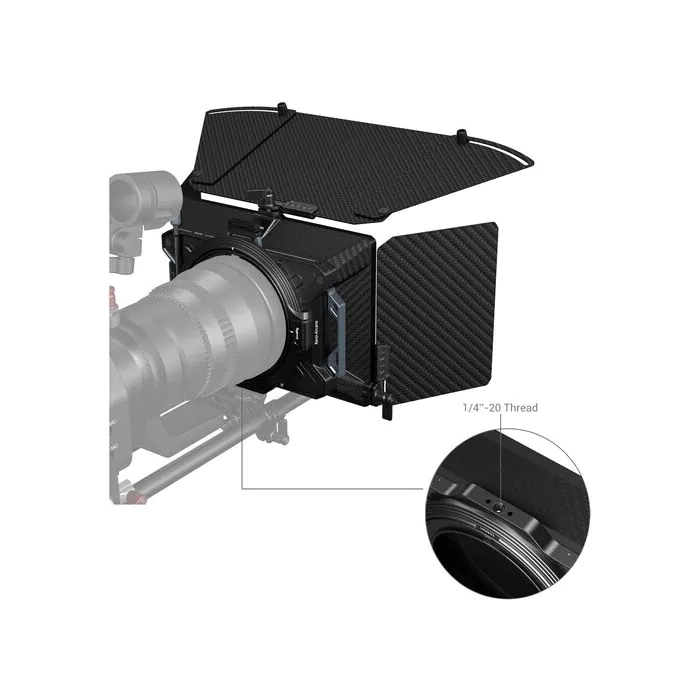

As one of the Revo-Arcane series matte boxes, SmallRig Multifunctional Modular Matte Box (Φ114mm) Basic Kit 3641 is designed for mirrorless cameras and cine lenses to prevent sunlight or other light from causing glare and flare and to control images on the screen. It comes standard with five threaded adapter rings (Φ67-114mm / Φ72-114mm / Φ77-114mm / Φ82-114mm / Φ86-114mm) for common DSLR lens and circular filters like VND, GND, CPL or you can separately purchase Clamp-On Ring Kit (Φ80-114mm / Φ85-114mm / Φ95-114mm / Φ110-114mm) 3408 or Silicone Donut 3409 for more cine lenses. The kit also includes a filter frame (4×5.65″) featuring an aluminum alloy frame and anti-off design, which can be quickly installed without leaving fingerprints. For attaching a 4×4″ filter, please purchase Filter Frame 3648; for holding multiple slide-in filters at the same time in a complex environment, please purchase Filter Frame Kit (4×5.65″) 3649. Thanks to the formfitting filter system, ultra-wide angle shot using ≥14mm focal length becomes possible. Among other accessories, the lens hood features magnetic installation and quick release design, the carbon fiber top flag opens 180° with side wings extending 38°and the side flags open 180°. Dual Rod Support 3652 supports and protects the lens. Our Revo-Arcane series matte box use plenty of lighter magnesium alloy and carbon fiber to provide lightweight shooting solutions.
Note:
1: Incompatible with 2mm thick, 100 x 100mm and 100 x 150mm slide-in filters.
2: Cannot hold the slide-in filter and circular filter at the same time.
3: Incompatible with a circular filter having an outside diameter larger than 100mm.
4: Please put Filter Frame (4×4″) 3648 in the innermost slot near the lens.
5: Please put VND Filter Kit 3651 in the innermost slot near the lens after removing the lens hood.
Technical Specification
SmallRig Revo-Arcane Matte Box Specs
| Attachment Method |
Lens Clamp
Rod Ports
|
| Lens Compatibility |
114 mm Opening
67 to 114 mm Lens Filter Thread (via Included Adapter)
72 to 114 mm Lens Filter Thread (via Included Adapter)
77 to 114 mm Lens Filter Thread (via Included Adapter)
82 to 114 mm Lens Filter Thread (via Included Adapter)
86 to 114 mm Lens Filter Thread (via Included Adapter)
|
| Rod Standard |
15 mm
|
| Swing-Away |
No
|
| Flags |
1 x Top Flag
2 x Side Flag
|
| Material |
Aluminum, Carbon Fiber
|
| Dimensions |
10 x 6.9 x 2.3″ / 254 x 174 x 59 mm
|
| Weight |
23.8 oz / 675 g
|
Packaging Info
| Package Weight |
3.315 lb
|
| Box Dimensions (LxWxH) |
11.2 x 8.8 x 4.2″
|
