Sprolink NeoLIVE R2 Plus Overview

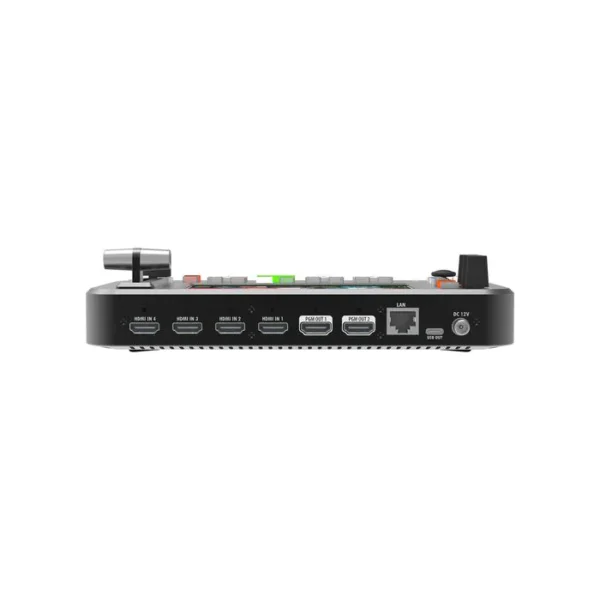

Designed for multi-camera livestreaming to the internet for broadcast, education, or business applications, the compact NeoLIVE R2 Plus 1080p Livestreaming Mixer from Sprolink features direct streaming to popular platforms, using the built-in streaming engine and your Ethernet connection plus USB-A and USB-C recording to external disks. This compact switcher provides gaming, corporate, and education livestreams in a four-input live production switcher with an integrated control panel, a T-bar, a 5.5″ 1080p LCD monitor, and two HDMI outputs for external monitoring. Switch between the four HDMI inputs for a live-switched stream of up to 1080p60 resolution and use the RJ45 Ethernet port for system management and remote control of IP PTZ cameras.

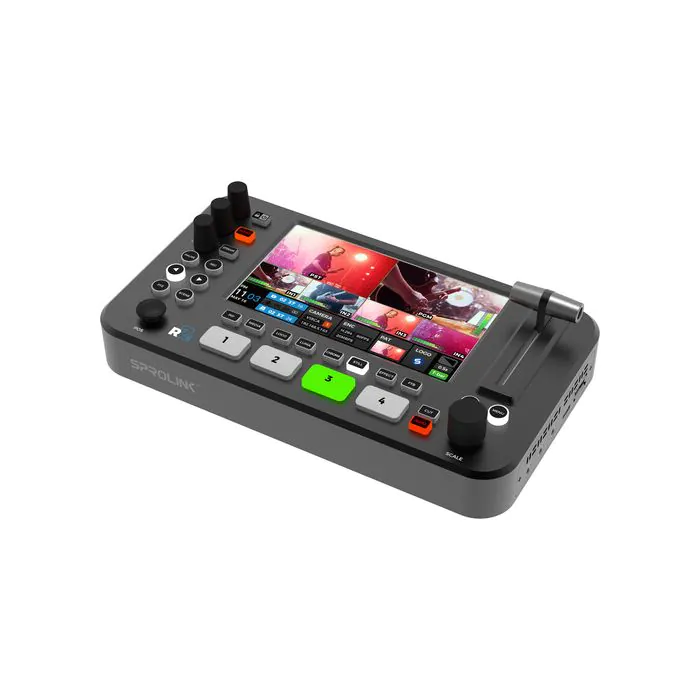

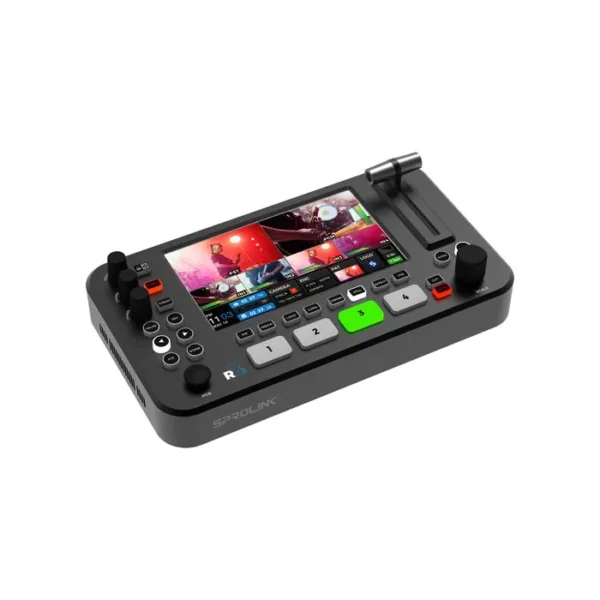

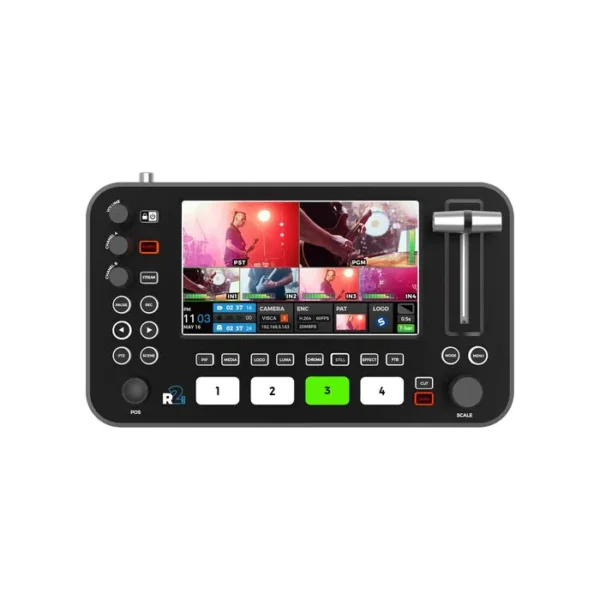

The control surface features a T-bar, a joystick, and easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The NeoLIVE R2 Plus features a chroma-keyer, picture-in-picture (PiP), a built-in audio mixer, a headphone jack, and two analog audio inputs to add your own audio via mic or other audio sources.
- Compact design with heat dissipation
- Four HDMI inputs
- Built-in 5.5″ LCD
- HDMI and USB 3.0 Type-C outputs
- UVC support
- Real-time audio and video editing and switching
- Insert graphics, slides, chroma-keying, and transitions
- Two 3.5mm stereo audio inputs for mic or line input
- 3.5mm stereo audio output to mixer or speakers
- Built-in audio mixer
- Remote control of PTZ cameras via LAN
- T-bar for transitions and effects and source selection via buttons
- Stream your video directly using the built-in streaming engine and your Ethernet connection.
- Compatible with popular platforms like TikTok, YouTube, and Facebook Live.
Use the NeoLIVE R2 Plus to easily switch between the host and multiple product views for e-commerce applications. This switcher’s compact and portable design is ideal for smaller studios and retail spaces.
The NeoLIVE R2 Plus can be used for online education and training, bringing multiple locations together for online training with chroma-keyed effects. You can also use it to record a series of lessons using a portable drive or disk.
The NeoLIVE R2 Plus is great for business presentations and live talk show programs. Using its four camera inputs, it can easily switch between close-up and wide-angle views.
Connect with several gaming consoles and one camera for commentary. Users can livestream at rates up to 60 fps on different game streaming platforms such as Twitch and can add commentary titles using the dynamic icon function.
Technical Specification
Sprolink NeoLIVE R2 Plus Specs
| Available M/E Layers |
1 M/E
|
| Effect Types |
Transition, Chroma Key
|
| Audio Mixing |
2-Channel Mixing
|
Processing
| Switching Type |
Pushbutton, T-Bar
|
| Latency |
3 Frames
|
| Processing Resolution |
1080p at 60
|
| Color Processing |
4:4:4YUV
|
Input
| Number of Video Input Sources |
4
|
| Video Inputs |
4x HDMI (1.3) Female
|
| Input Video Format |
HDMI (4:4:4 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50 fps
720p at 50/60 fps
WUXGA+ (1680 x 1050) at 60 fps
1600 x 1050 at 60 fps
WXGA+ (1440 x 900) at 60 fps
FWXGA (1366 x 768) at 60 fps
1360 x 768 at 60 fps
SXVGA (1280 x 1024) at 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
XGA (1024 x 768) at 60 fps
|
| Audio Inputs |
2x 1/8″ / 3.5 mm TRS Stereo Analog Female
|
| Input Audio Format |
Analog
|
| Embedded Audio Input |
HDMI
|
Output
| Video Output Channels |
2
|
| Video Outputs |
2x HDMI Female (Program)
1x USB-C (3.0) Female (Program)
|
| Output Video Format |
HDMI / USB-C (4:4:4 YUV)
1080p at 24/30/50/60 fps
1080i at 50/60 fps
720p at 50/60 fps
|
| Audio Outputs |
1x 1/8″ / 3.5 mm TRS Analog Female
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI
USB-C
RJ45
|
| Multiview Output |
Yes
|
Connectivity
| Other I/O |
1x USB-A Input
1x USB-C Tally, 2.0 Input/Output
1x RJ45 Control, LAN, PTZ Input/Output
|
| HDCP Support |
No
|
| IP Video |
MJPEG/YUY2:
1920 x 1080 at 24p, 30p, 50p, 60p Encoding
|
| Transport Protocols |
RTMP
|
Display
| Display Size |
5.5″
|
| Screen Resolution |
1920 x 1080
|
Hardware
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel (12 VDC at 1.5 A) Input
|
| Power Consumption |
Device: 18 W
|
Environmental
| Operating Temperature |
32 to 102°F / 0 to 70°C
|
| Operating Humidity |
10 to 85%
|
General
| Dimensions |
8.7 x 5 x 1.3″ / 220 x 126 x 33 mm
|
| Weight |
1.1 lb / 500 g
|
Packaging Info
| Package Weight |
2.705 lb
|
| Box Dimensions (LxWxH) |
11.8 x 7 x 4″
|
