SWIT Curve500+ HDMI 500ft/150m Wireless with USB capture

AED 2,992.50

  •  KUWI 5.1-5.9GHz Wireless Technology
  •  DFS Comply
  •  HDMI input and loop output
  •  USB Video Capture output for PC/Mac
  •  500ft/150m (Line-of-Sight) distance
  •  Strong Wall-Cross Performance
  •  2-ch HDMI audio transmission
  •  Auto detecting wireless environment and switching
  •  Support 7 pairs working in one location
  •  Wireless protocol & content double encryption
Wishlist
SKU: CURVE500 Plus
View All With This Brand: SWIT

Description

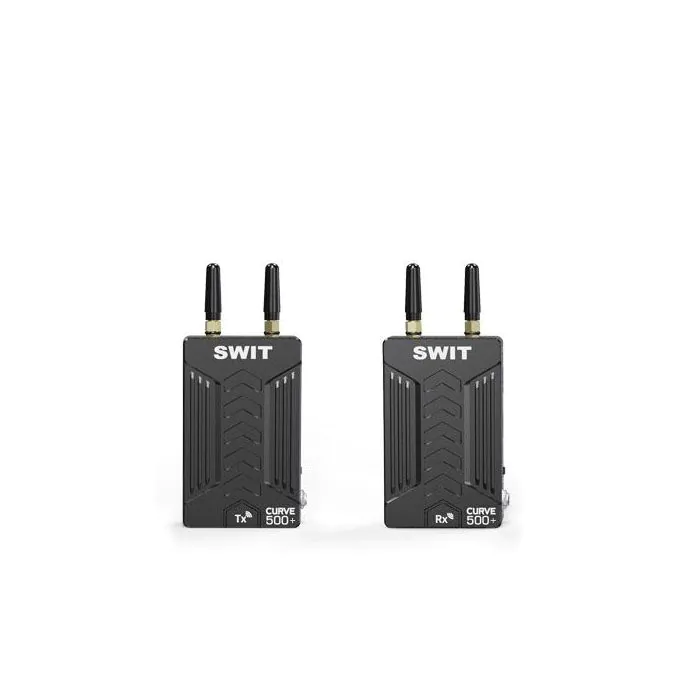

Swit CURVE500+ Wireless HDMI Video Transmitter

Wireless HDMI Transmission

New Update with USB Video Capture

CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance.

As the updated version, CURVE500+ support USB video capture output to computer for live streaming

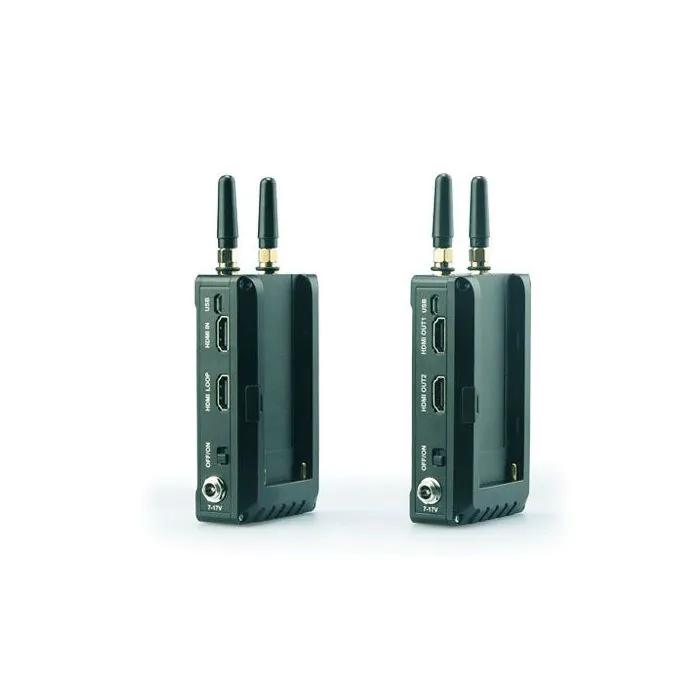

Input and Output

The Transmitter (Tx) supports
1x HDMI input
1x HDMI loop output

The Receiver (Rx) supports
2x HDMI output
1x Micro USB Video Capture output

USB Video Capture for PC/Mac

CURVE500+ Receiver provides an USB port for video capture output to computer. You can find CURVE500+ wireless video source from video conference software like MS Team, ZOOM etc, to capture high quality up to 1080p60 video instead of computer webcam.

You can pull CURVE500+ wireless receiving video source to OBS studio, editing, switching and live streaming broadcasting.

500ft/150m Strong Wall-Cross

CURVE500+ supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports HDMI embedded audio (CH1&2) transmission.

Backstage Frequency Jumping

CURVE500+ works between 5.1-5.9GHz, DFS comply, and has built-in wireless scanner to detect wireless condition and automatically jump to the best wireless channel to keep reliable connection and transmission.

Up to 7 Pairs Work Together

At one location, you can use up to 7 pairs of CURVE500+ wireless system, without interference to each other.

Technical Specification

Input / Output
Transmitter HDMI 1.3 input ×1
HDMI 1.3 loop output x1
Receiver HDMI 1.3 Primary output ×1
HDMI 1.3 Secondary output x1
Micro USB video capture output x1
Video Formats
HDMI 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
USB 1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
720p60, 720p59.94, 720p50
Wireless
Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power 50mW
Transmission Distance 500 feet / 150 meters (Line of sight)
General
Input voltage Transmitter DC 7-17V
Receiver DC 7-17V
Power Consumption Transmitter 7.5W
Receiver 7W
Dimension (w/o antenna) Transmitter 114.18×69.55×28 (mm)
Receiver 114.18×69.55×28 (mm)
Net weight Transmitter 180.8g
Receiver 181.2g; With package 1.05kg
Working Temperature 0°C -+40°C

In the Box

  • 1x CURVE500+ Transmitter
  • 1x CURVE500+ Receiver
  • 2x D-Tap to lockable Pole-tap Cable
  • 1x AC-DC Adaptor
  • 1x Micro-USB to USB-A Cable
