ARRI Omnibar 4 Production Kit (Black)

AED 44,300.00
Excl. Tax: AED 42,190.48

  • For Film, Broadcast & Video Production
  • Six Linear IP65 LED Lights
  • CRMX/Bluetooth Wireless Control
  • Wired DMX Control via Included Omnibase
  • Magnetic Optics and Mounting
  • RGBAM Color Mixing, 1700-20,000K CCT
  • Battery-Powered Operation

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: LK.0052582
View All With This Brand: ARRI

Description

ARRI Omnibar 4 Production Kit (Black)



Pixon Media Trading introduces a versatile 4′ linear LED lighting system engineered for fast setup, seamless daisy‑chaining, and advanced creative control, making it ideal for broadcast, film, studio, and content‑creation environments.

Modular Linear LED System With IP65 Protection

Each 4′ LED bar features RGBMA color mixing, magnetically interchangeable optics, and an IP65‑rated design for reliable indoor and outdoor use. The slim, lightweight form factor supports flexible rigging and practical mounting options across a wide range of production scenarios.

Wide CCT Range and Advanced Color Modes

With a CCT range from 1700K to 20,000K, the system delivers precise color control for cinematic lighting. RGBMA mixing, Pixeleffects, and effects matching high‑end panel fixtures enable dynamic looks, creative transitions, and consistent color reproduction across multiple units.

Battery‑Powered Operation for Maximum Mobility

An integrated battery provides up to 24 hours of operation at lower outputs and a minimum of two hours at full brightness. The battery is fully service‑replaceable and supported by authorized service partners, ensuring long‑term reliability.

Built‑In Wireless and Wired Control Options

The system includes integrated CRMX and Bluetooth control, allowing wireless operation via mobile apps or mesh networks. For wired workflows, the included control unit supports DMX, Art‑Net, sACN, and Bluetooth Mesh, offering robust connectivity for professional lighting setups.

Daisy‑Chain Power and Data for Fast Setup

Multiple units can be daisy‑chained with minimal visible gaps, sharing a single power and data source. This reduces cable clutter, speeds up installation, and supports synchronized lighting across large sets.

Magnetic Optics for Quick Light Shaping

Front‑loaded magnetic optics allow fast swapping between:

  • Round diffusers for maximum softness
  • Flat diffusers for controlled softening
  • Intensifiers for a focused 60° beam

These options provide precise control over beam spread and light quality.

Intuitive Onboard Menu and Control Panel

A built‑in LCD and recessed control panel offer quick access to CCT, RGB, and effects modes, runtime information, and DMX configuration. The interface is designed for fast adjustments during on‑set operation.

Professional Control Unit for Wired DMX Workflows

The included control unit provides IP‑rated durability and supports up to six DMX universes. It features a responsive touchscreen, 5‑pin XLR I/O, and RJ45 Ethernet ports for integration with CRMX, Art‑Net, sACN, and Bluetooth Mesh systems. Note: Power cable for the control unit is not included.

Rugged IP65 Build for Harsh Environments

The weather‑sealed construction resists dust and water, making the system suitable for exterior shoots, wet locations, and semi‑permanent installations. Its durable build ensures consistent performance in challenging conditions.

Flexible Mounting With Included Accessories

The kit includes:

  • Mounting clips with multiple thread points and angle options
  • Grip adapters for 16mm mounting on stands and clamps
  • Pins and eyebolts for safety chain integration
  • Mini tripods for vertical placement and battery‑powered setups

These tools support horizontal, vertical, and multi‑fixture configurations.

Wireless App Control for Fast Configuration

A dedicated mobile app provides intuitive control over color, effects, and DMX settings. Bluetooth Mesh allows fixtures to relay signals between each other, extending range and improving stability without additional hardware.

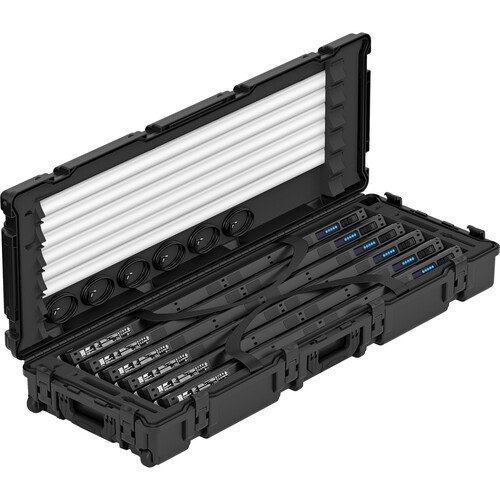

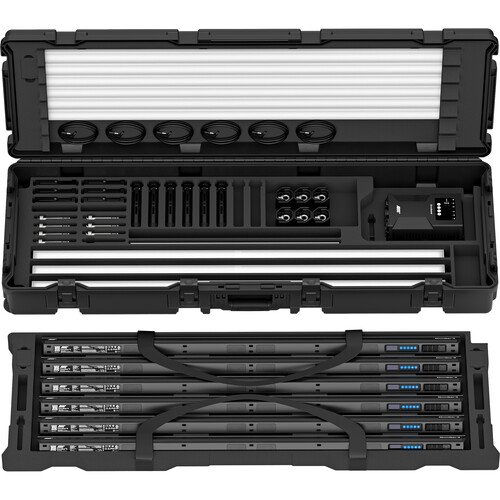

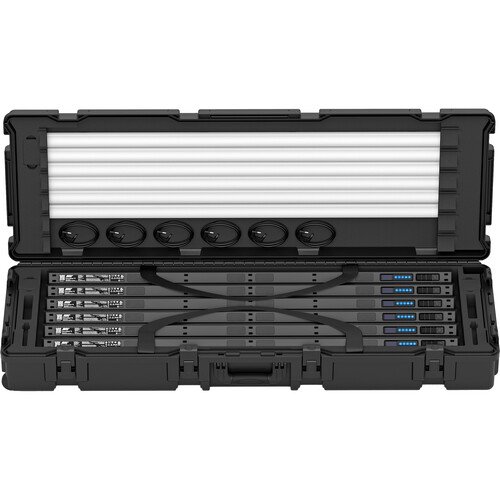

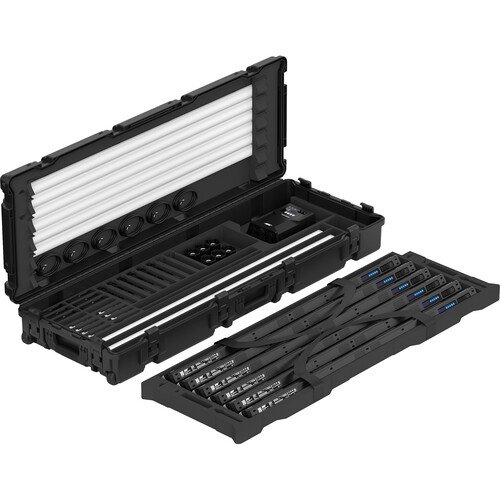

Production‑Ready Case for Complete Kit Organization

The included production case stores all six lights, optics, mounting accessories, and power components in dedicated compartments, ensuring efficient transport and quick deployment on set.

Professional Linear Lighting Solution

Designed for filmmakers, lighting technicians, and content creators who require fast setup, modular expansion, and advanced color control, this linear LED system delivers powerful, flexible illumination for any production—Offered by Pixon Media Trading, making it a trusted choice for professional lighting environments.

Technical Specification

Key Specs
Item Type
6x LED Light Bar
Included Light Modifier
6x Diffuser
6x Dome
6x Intensifier
Included Storage Case
Yes
Photometrics at 3.3′ / 1 m
115° at 3200K: 124 fc / 1339 Lux (Unmodified)
115° at 5600K: 137 fc / 1475 Lux (Unmodified)
145° at 3200K: 69 fc / 752 Lux (with Dome)
145° at 5600K: 77 fc / 832 Lux (with Dome)
130° at 3200K: 61 fc / 663 Lux (with Diffuser)
130° at 5600K: 68 fc / 737 Lux (with Diffuser)
60° at 3200K: 108 fc / 1168 Lux (with Filter)
60° at 5600K: 119 fc / 1287 Lux (with Filter
Color Temperature
1700 to 20,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 98 at 3200 to 5600K
TLCI 98 at 3200 to 5600K
TM-30 Rf 93 at 3200 to 5600K
Dimming
App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM (Continuous)
 • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
CRMX
Bluetooth
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
AC Power (Cable Not Included) *Requires Power Supply/Controller (Included)
Battery
Per Light: 1x Rechargeable (Built-In)
Input Power
24 VDC at 2.1 A
100 to 240 VDC
Power Consumption
50 W
Fixture Mounting
2x 3/8″-16 Female Thread
Proprietary
Magnetic
Light Fixture
Item Type
6x LED Light Bar
Included Light Modifier
6x Diffuser
6x Dome
6x Intensifier
Included Storage Case
Yes
Lumens
4521 (at 3200K)
4981 (at 5600K)
Photometrics
115° at 3200K:
124 fc / 1339 Lux at 3.3′ / 1 m (Unmodified)
16 fc / 177 Lux at 9.8′ / 3 m (Unmodified)
6 fc / 65 Lux at 16.4′ / 5 m (Unmodified)
115° at 5600K:
137 fc / 1475 Lux at 3.3′ / 1 m (Unmodified)
18 fc / 195 Lux at 9.8′ / 3 m (Unmodified)
6 fc / 72 Lux at 16.4′ / 5 m (Unmodified)
145° at 3200K:
69 fc / 752 Lux at 3.3′ / 1 m (with Dome)
9 fc / 104 Lux at 9.8′ / 3 m (with Dome)
3 fc / 39 Lux at 16.4′ / 5 m (with Dome)
145° at 5600K:
77 fc / 832 Lux at 3.3′ / 1 m (with Dome)
10 fc / 115 Lux at 9.8′ / 3 m (with Dome)
3 fc / 43 Lux at 16.4′ / 5 m (with Dome)
130° at 3200K:
61 fc / 663 Lux at 3.3′ / 1 m (with Diffuser)
8 fc / 90 Lux at 9.8′ / 3 m (with Diffuser)
3 fc / 34 Lux at 16.4′ / 5 m (with Diffuser)
130° at 5600K:
68 fc / 737 Lux at 3.3′ / 1 m (with Diffuser)
9 fc / 100 Lux at 9.8′ / 3 m (with Diffuser)
3 fc / 37 Lux at 16.4′ / 5 m (with Diffuser)
60° at 3200K:
108 fc / 1168 Lux at 3.3′ / 1 m (with Filter)
16 fc / 182 Lux at 9.8′ / 3 m (with Filter)
6 fc / 69 Lux at 16.4′ / 5 m (with Filter)
60° at 5600K:
119 fc / 1287 Lux at 3.3′ / 1 m (with Filter)
18 fc / 200 Lux at 9.8′ / 3 m (with Filter)
7 fc / 76 Lux at 16.4′ / 5 m (with Filter)
Color Temperature
1700 to 20,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 98 at 3200 to 5600K
TLCI 98 at 3200 to 5600K
TM-30 Rf 93 at 3200 to 5600K
Dimming
App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM (Continuous)
 • 0 to 100%
Cooling System
Passive
Expected Lamp Life
50,000 Hours (L70)
Beam Angle
115° Unmodified
145° with Included Dome
130° with Included Diffuser
60° with Included Intensifier
Built-In Flash
No
Pixel Zones
32
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
CRMX
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Omnibar Control App
Functionality: Firmware Update, Remote Control, Setup
Power & I/O
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
AC Power (Cable Not Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs
Light Fixture
1x Barrel / Coax (2.1 x 5.5 mm) Power/DMX Input (24 VDC at 2.1 A)
1x Barrel / Coax (2.1 x 5.5 mm) Power/DMX Output (24 VDC at 2.1 A)
1x USB-C Female Power Input
Power Supply/Controller
1x powerCON TRUE1 Male AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x powerCON TRUE1 Female AC Power Output (100 to 240 VAC, 50 / 60 Hz)
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
4x Barrel / Coax (2.1 x 5.5 mm) Female Power/DMX Output (24 VDC at 4 A)
2x Barrel / Coax (2.1 x 5.5 mm) Female Power/DMX Output (24 VDC at 8 A)
Battery
Per Light: 1x Rechargeable, 98 Wh (Built-In)
 • Up to 24-Hour Runtime at Minimum Brightness
 • Up to 2-Hour Runtime at Maximum Brightness
 • 3-Hour Charge Time
Battery Charging
Included
Input Power
24 VDC at 2.1 A
100 to 240 VDC
Included Adapter / Cable
6x Barrel / Coax (2.1 x 5.5 mm) Male to Barrel / Coax (2.1 x 5.5 mm) Male Cable (4.3′ / 1.3 m)
Power Pass-Thru
Yes
Power Consumption
50 W
Mounting
Included Light Stand / Mount
6x Tabletop Tripod with 3/8″-16 Male Screw
Fixture Mounting
2x 3/8″-16 Female Thread
Proprietary
Magnetic
Included Adapter
7x Non-Swivel Mount: 5/8″ Stud to Proprietary
6x Quick-Release Plate
General
Display
Yes
Environmental Resistance
Dust/Weather-Resistant (IP65)
Operating Conditions
32 to 104°F / 0 to 40°C
Certifications
CB, CE, ENEC, ETL, FCC, KC, Kcc, PSE, RCM, REACH, RoHS2.0

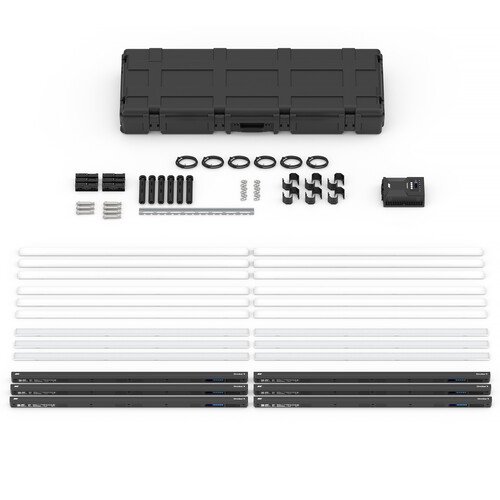

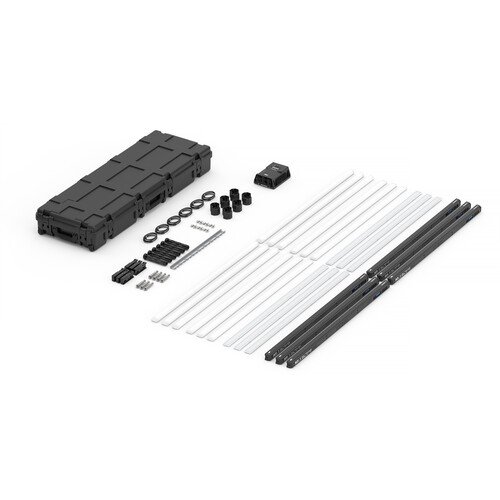

In the Box

  • ARRI Omnibar 4 Production Kit (Black)
  • 6 x ARRI Omnibar 4 Single Set (Black)
  • 6 x Round Diffuser
  • 6 x Flat Diffuser
  • 6 x Intensifier
  • 6 x Omnigrip
  • 7 x Omnipin
  • 12 x Omniclip
  • 12 x Eyebolt
  • Omnibase
  • 6 x Mini Tripod
  • 6 x Power Cable (4.3′)
  • Omnibar Case
  • Limited 1-Year Manufacturer Warranty
