Atomos Ninja RAW 5.2″ HDMI Monitor/Recorder

Pixon Media Trading introduces the Atomos Ninja RAW 5.2″ HDMI Monitor/Recorder; a compact, high‑brightness monitor‑recorder designed for professional productions and content creators who require advanced monitoring tools, RAW recording capabilities, and seamless integration with modern camera workflows.

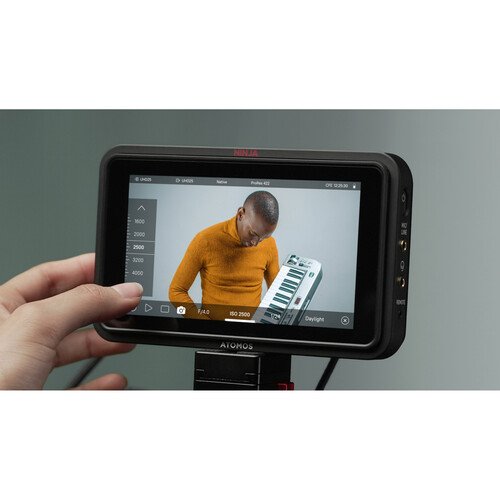

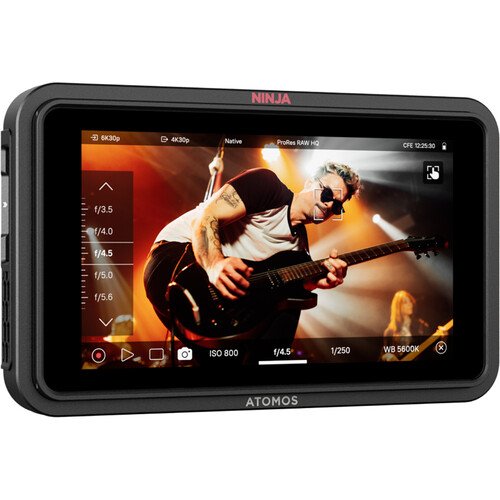

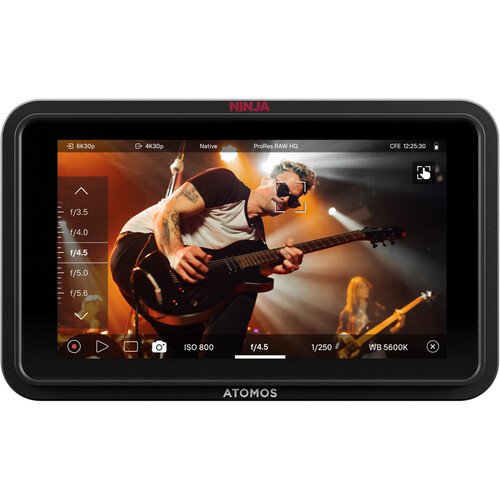

High‑Brightness Touchscreen Monitoring

The 5.2″ IPS touchscreen delivers a 1920 × 1080 resolution with a bright 1500 cd/m² display for accurate viewing in daylight conditions. With 8/10‑bit processing, HDR support, Rec. 709 color accuracy, and calibration compatibility, it ensures precise monitoring for both on‑set and field use.

Updated Operating System for Enhanced Performance

Powered by a refined Linux‑based operating system, the interface offers improved efficiency, cooler operation, and updated monitoring tools. It is optimized for use with compatible devices to ensure smooth performance across demanding workflows.

Advanced Color, Log, and Metadata Support

The monitor supports a wide range of log formats from major camera systems and allows custom 3D LUT uploads. HDR conversion output is available in Log, HLG, PQ, and Dolby Vision. RAW metadata such as white balance, ISO, shutter angle, and gamma can be recorded for streamlined post‑production.

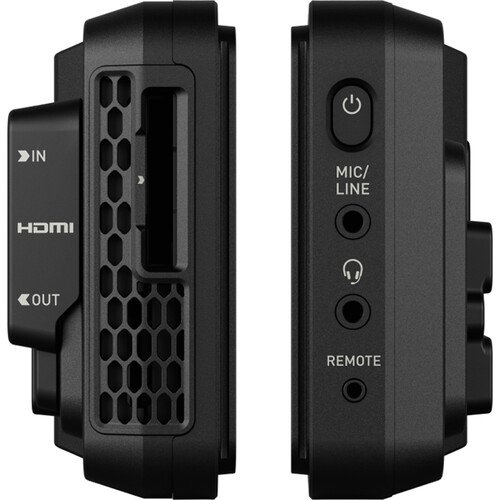

High‑Resolution HDMI Input and Output

The HDMI input supports up to 8K30, DCI/UHD 4K60, and 1080p120 signals. A loop‑through output passes the incoming feed to additional devices such as transmitters, monitors, or encoders, enabling flexible multi‑device setups.

Integrated Tally Light System

A built‑in tally light provides clear visual feedback during recording or broadcast. Red indicates active recording, while green signals preview or standby mode—ideal for multi‑camera environments and talent communication.

Flexible Recording and USB‑C Functionality

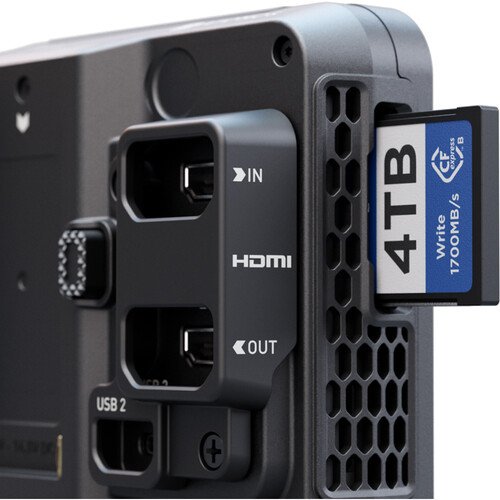

The device includes a CFexpress Type B slot and dual USB‑C recording outputs supporting high‑speed PCIe/NVMe‑based workflows. USB‑C ports also enable calibration, LUT uploads, audio device integration, and firmware updates. Recent firmware updates add RAW recording support for select camera models at resolutions up to 6960 × 3672p30 and 4320 × 2278p60.

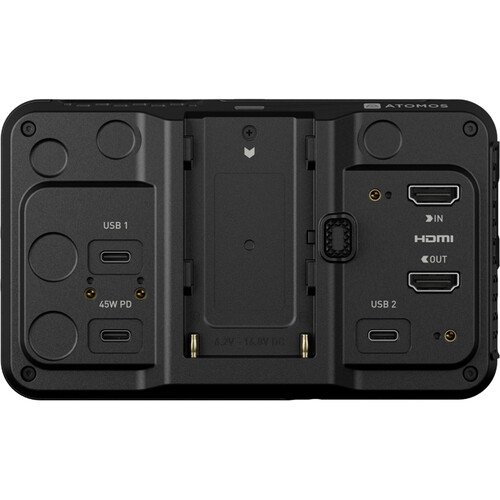

Versatile Power Options

Power is supplied via an L‑series battery plate or an optional DC battery eliminator. A USB‑C port supports 30W PD input for continuous operation using the included cable.

Segmented Recording for Workflow Efficiency

SegmentPro allows long recordings to be automatically divided into smaller, user‑defined segments without dropping frames. This simplifies file management and reduces the risk associated with large single‑file recordings.

Optional Network and Cloud Integration

With an optional USB‑C network adapter, the device supports Camera‑to‑Cloud workflows, enabling direct upload to cloud platforms such as ATOMOSphere, Frame.io, and Dropbox. It can also function as an NDI source or receiver for low‑bandwidth, high‑quality video transmission.

Comprehensive Monitoring Tools

A full suite of one‑touch monitoring tools includes focus peaking, zebras, false color (including ARRI and EL Zone), frame guides, safe areas, grid markers, waveforms, RGB parade, vectorscope, zoom options, and flexible LUT support. Anamorphic de‑squeeze ensures accurate monitoring for anamorphic lenses.

Intuitive Control and Camera Integration

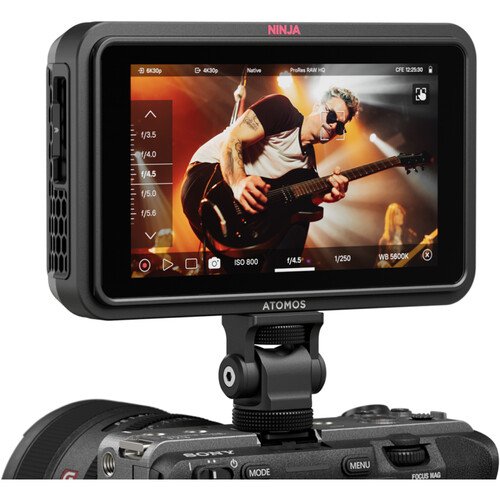

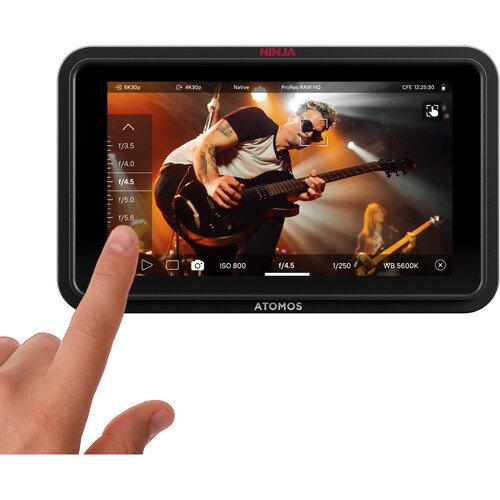

Multifunction buttons complement the touchscreen for responsive control. Auto HDMI camera triggering is supported for select systems, and LANC control is available via an optional USB‑C to serial cable. Camera control features are enabled through the latest firmware updates.

Professional Monitoring and Recording Solution

Designed for filmmakers and creators who require advanced monitoring, RAW recording, and flexible connectivity, this compact monitor‑recorder delivers powerful performance across a wide range of production environments—Offered by Pixon Media Trading, making it a trusted choice for professional workflows.
