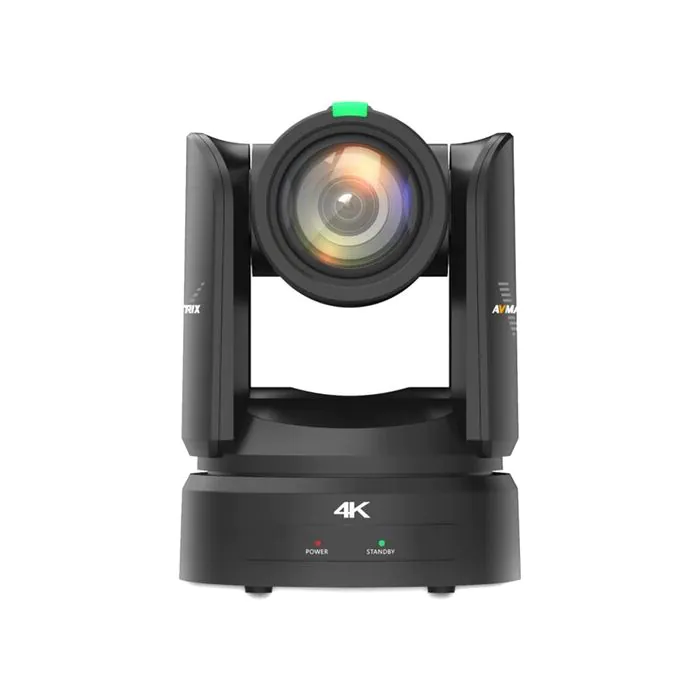

AVMATRIX EAGLE P20 4K Broadcast PTZ Camera with 20x Optical Zoom

AED 9,613.80
Excl. Tax: AED 9,156.00

  • Up to UHD 4K Video via HDMI & 12G-SDI
  • 1G LAN Port for RTMP/RTSP/ONVIF Streams
  • UVC, VISCA, Pelco-D, Pelco-P Control
  • 20x Optical/12x Digital Zoom
  • 3.5mm Stereo Audio Line-Level In
  • Autofocus, up to 255 Presets
  • 12 VDC Adapter Included

Delivery will be in 2 to 4 weeks.

Wishlist
SKU: EAGLE P20-12G
View All With This Brand: AVMatrix

Description

Add a powerful PTZ with 4K video capture to your professional broadcasts with this EAGLE P20 4K Broadcast PTZ Camera with 20x Optical Zoom from AVMatrix. The P20 offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. The P20 also supports IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports up to UHD 4K60 video output via IP, USB, HDMI, and 12G-SDI and has a Gigabit LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.
UHD 4K Capture
The EAGLE P20 features a high-resolution 8.3MP 4K 1/1.8″ CMOS sensor that can capture up to UHD 4K60 video.
Optical Zoom Lens
The camera features a 20x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a 59.2° wide horizontal field of view and 12x digital zoom to get even closer to your subjects with little image quality loss.
Versatile Interfaces

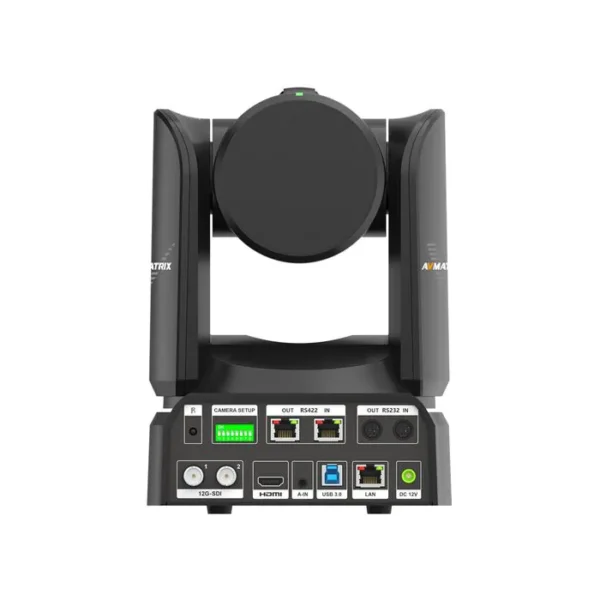

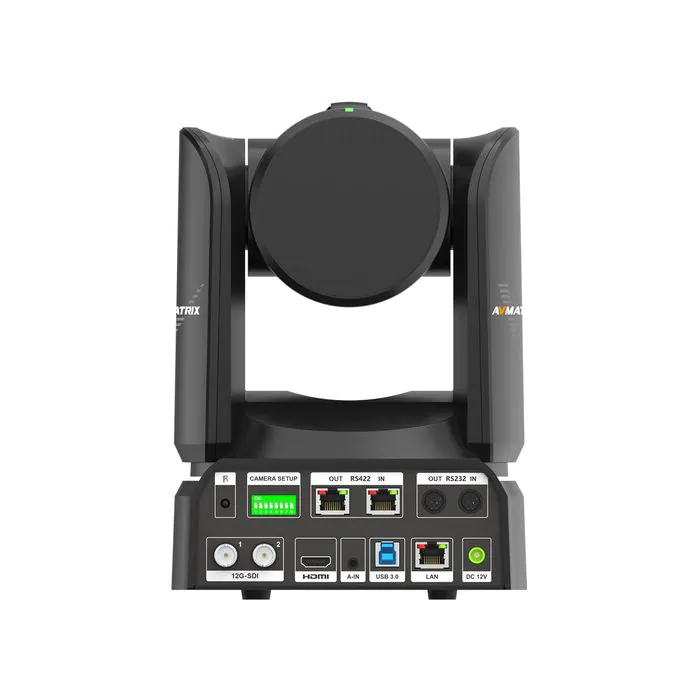

Output your video in multiple ways using the HDMI 2.0, two simultaneous 12G-SDI, USB 3.0, and LAN streaming ports. All of the ports can output video up to 4K60, and you can control the camera simultaneously via UVC.
FreeD Support for AR/VR
Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.
Control Protocols
In addition to UVC control over the USB port, the camera can be controlled via VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485, RS-422, or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.
Presets
The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to “freeze” actions for free switching between preset configurations.
Other Notable Features
  • Dual-color tally light
  • 360° infrared remote control range
  • Autofocus
  • ±175° panning range
  • -30/+90° tilting range
  • ONVIF, RTSP, RTMP/S, SRT streaming protocols
  • H.265/H.264/MJPEG compression format support
  • 3.5mm line audio input
  • Gigabit Ethernet
  • Powered via included power supply

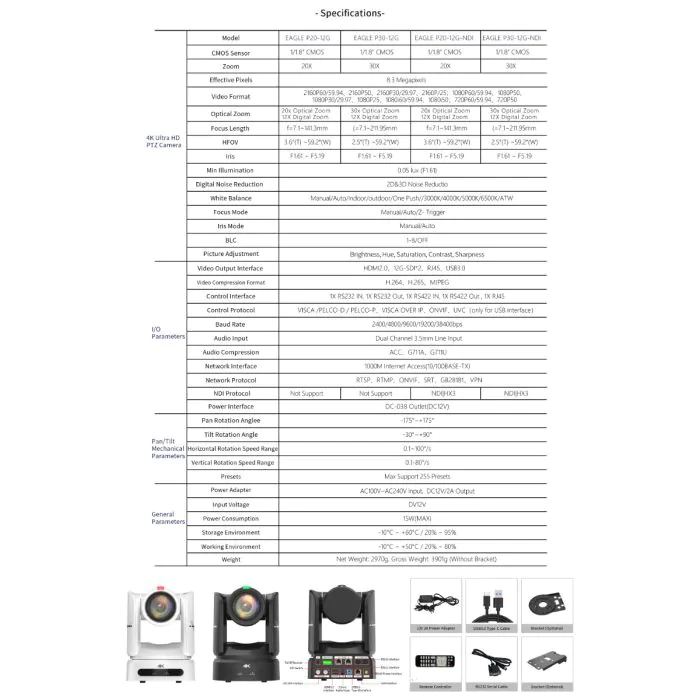

Technical Specification

No tech specs

In the Box

  • AVMATRIX EAGLE P20 4K Broadcast PTZ Camera with 20x Optical Zoom
  • Power Adapter
  • USB-C 3.0 Cable
  • IR Remote Control
  • RS-232 Serial Cable
  • Limited 3-Year Manufacturer Warranty
